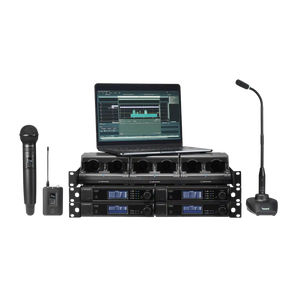

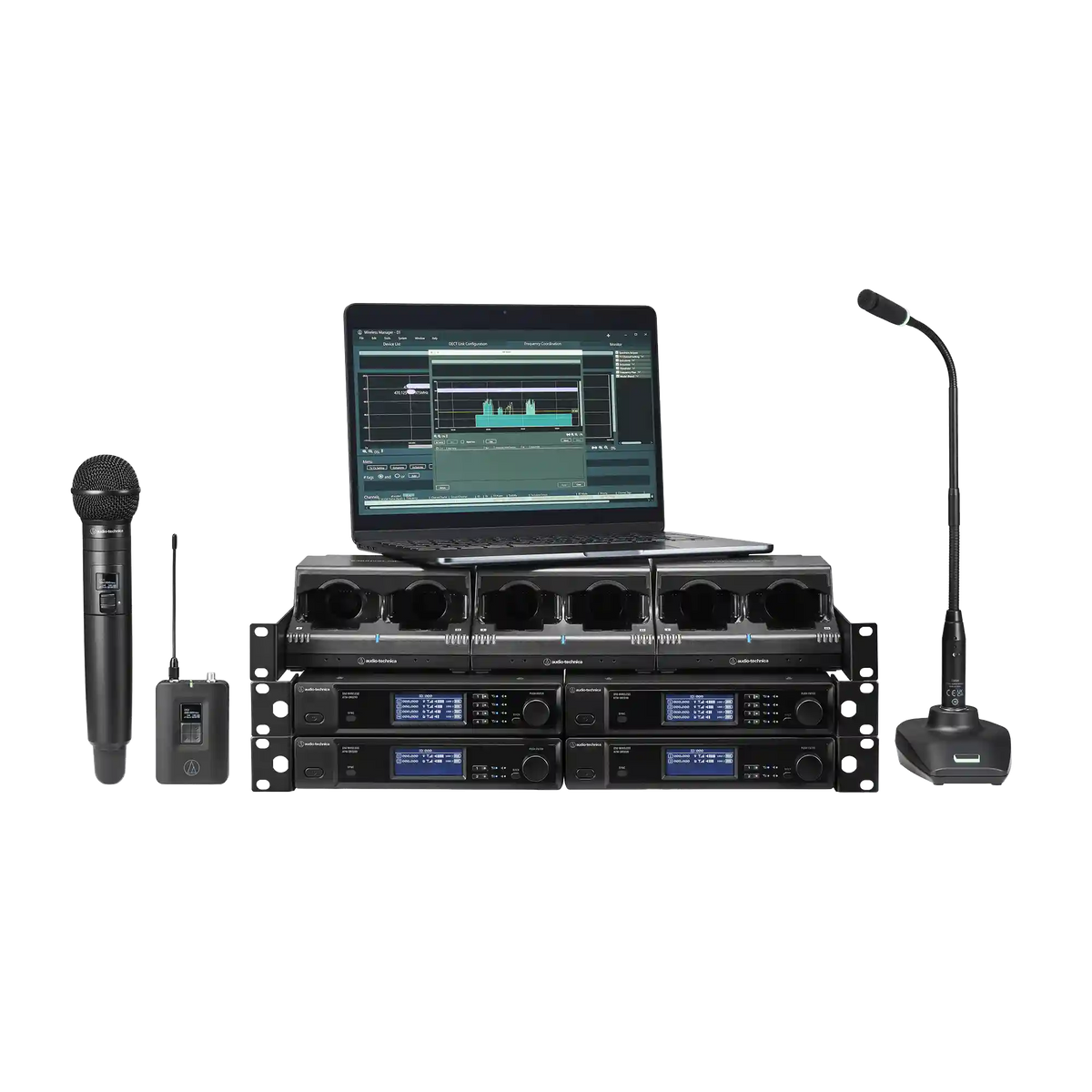

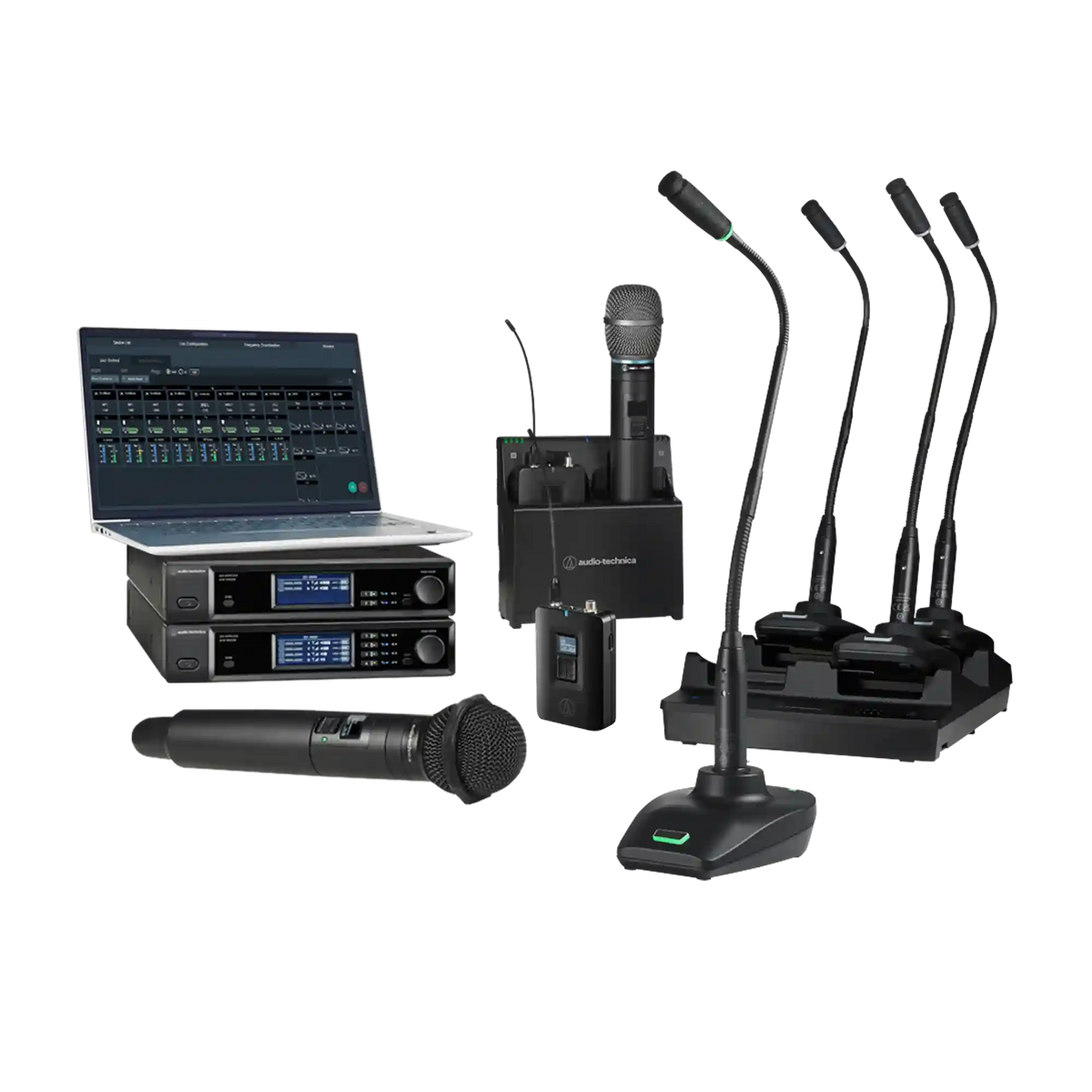

D50 Wireless

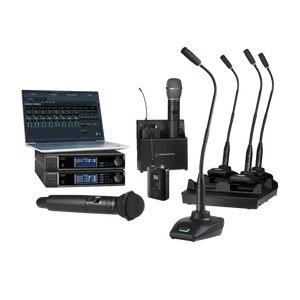

Drawing on decades of Audio-Technica digital wireless expertise, the D50 digital UHF wireless system was purpose-built to meet the true needs of integrators and users. We held nothing back in designing this system, combining the best aspects of our existing models with useful technological advances to create a multichannel wireless system that leads its class in sound quality, RF stability, operational versatility, and value. Boasting an expansive bandwidth (up to 244 MHz, depending on region) in the all-important TV broadcast range, D50 wireless allows for secure, flexible channel planning wherever the system is deployed, even in the most complex RF environments.

• Full tuning bandwidth of up to 244 MHz, depending on region (up to 138 MHz in the U.S.), in the broadcast range enables flexible channel planning in complex RF environments


• Switchable between normal mode (Antenna Combining Diversity) and robust mode (MRC True Diversity), which offers superior RF stability


• User can switch from Standard mode (17 frequencies per 6 MHz TV channel) to HD mode (47 frequencies per 6 MHz TV channel) when operating in congested urban RF environments


• Proven Audio-Technica audio superiority – including interchangeable Artist Elite® microphone capsules for the most demanding performances


• Onboard DSP offers high-pass filter, 4-band EQ, and compressor settings for each channel


• Supports AES256 encryption for superior security


• Equipped with a network port for monitoring and device configuration via Wireless Manager

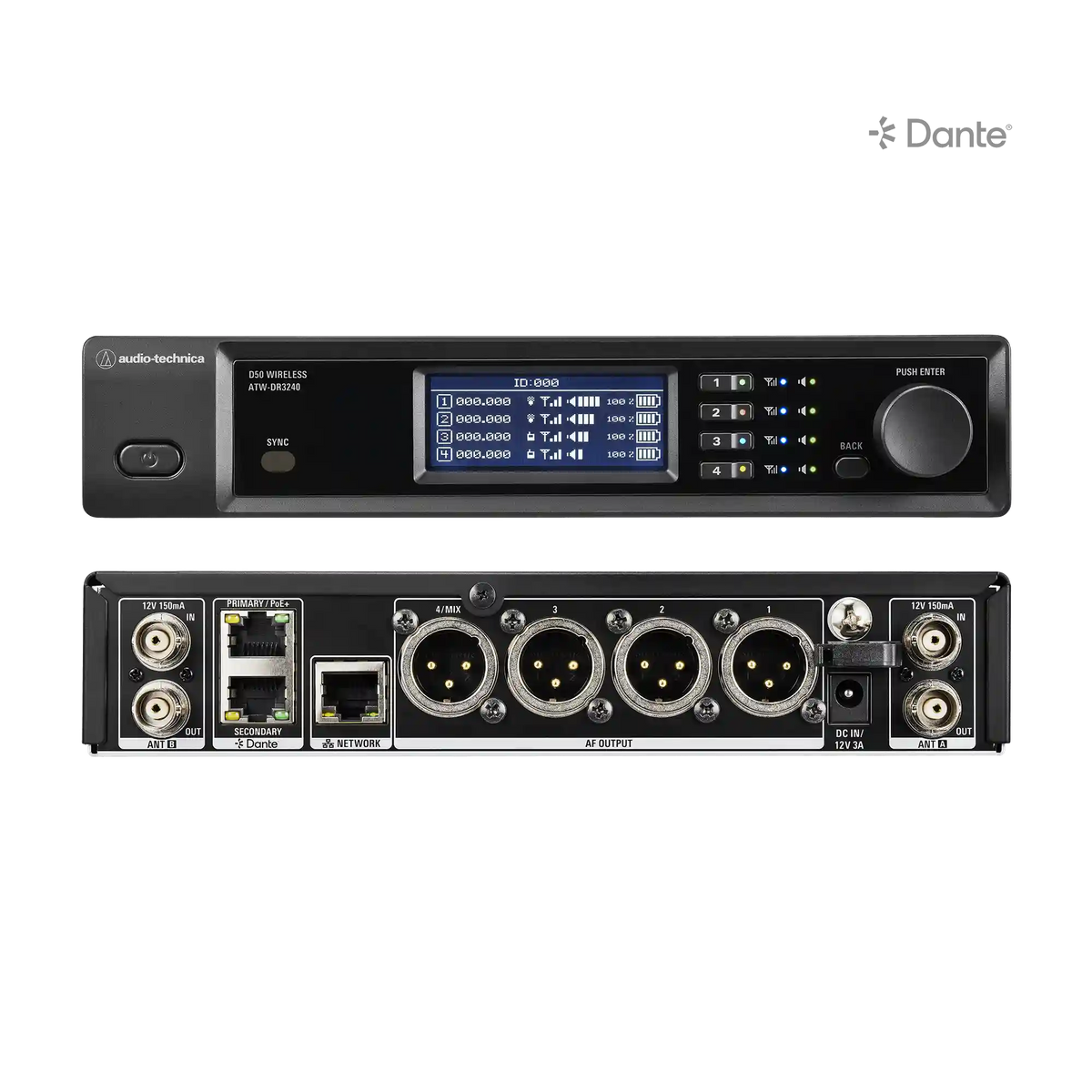

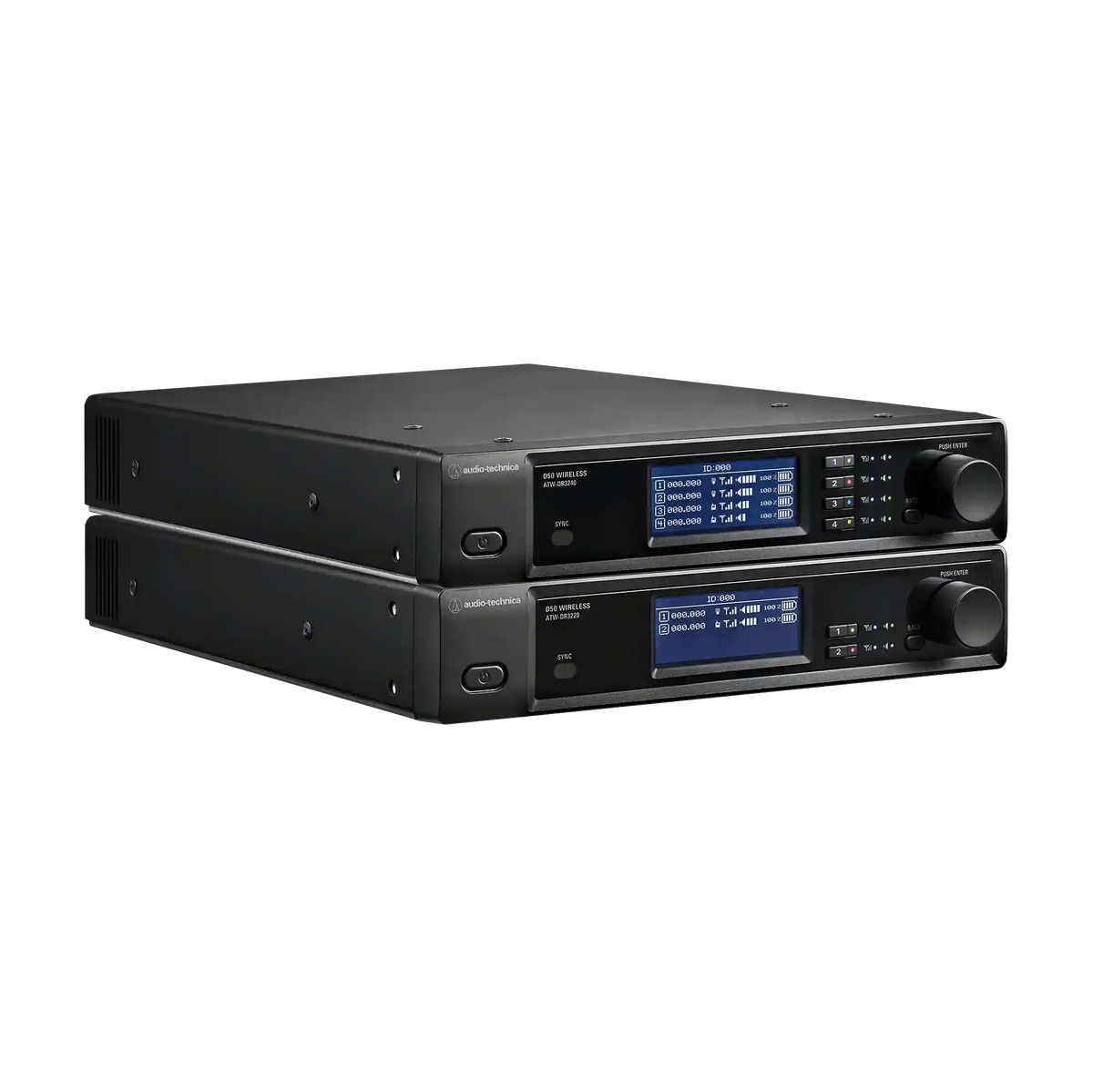

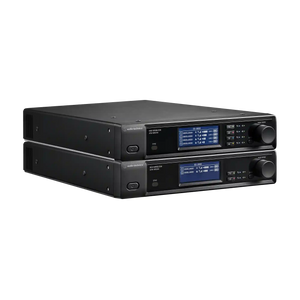

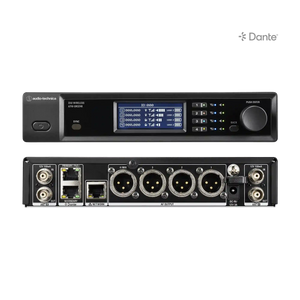

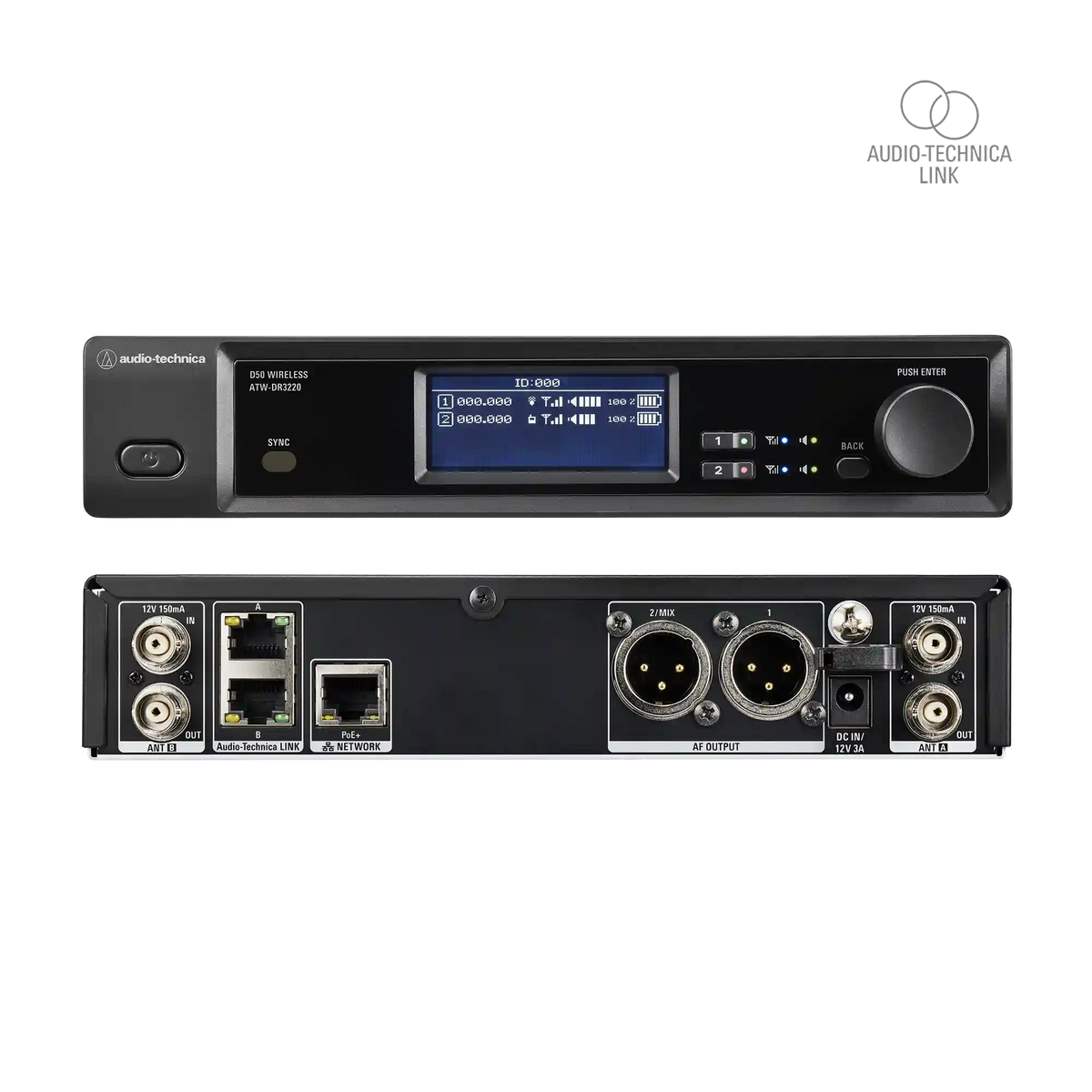

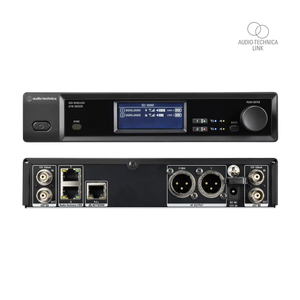

• Half-rack receiver is available in two versions – 4-ch Dante® (ATW-DR3240DAN) and 2-ch Audio-Technica LINK (ATW-DR3220LK) – offering up to eight channels in a single rack space (included short and long rack ears can be used to mount one receiver in a half-rack space and two long ears can be combined as a joining plate to mount two receivers in a full space)


• Dante model supports Dante redundancy, daisy-chaining, and 96 kHz sampling rate


• Receiver can be powered by AC adapter or PoE+; PoE+ also provides redundancy to keep the receiver powered if AC is interupted


• Receiver can be set to mixed output in situations where input channels are limited


• Spectrum analysis (accessible via receiver’s front-panel display and/or Wireless Manager software) and IR sync functionality make setup easy


• Wireless Manager’s system management tools include those to configure detailed EQ and COMP settings, and an advanced walk test for visual confirmation of multiple RF conditions


• Rugged cH-style connector on body-pack transmitter provides secure connection to lavalier mics, headworn mics, and cables with cH-style screw-down 4-pin connector

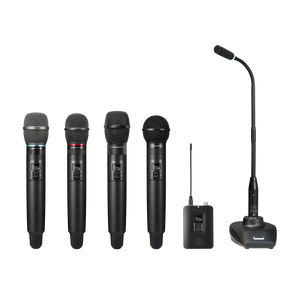

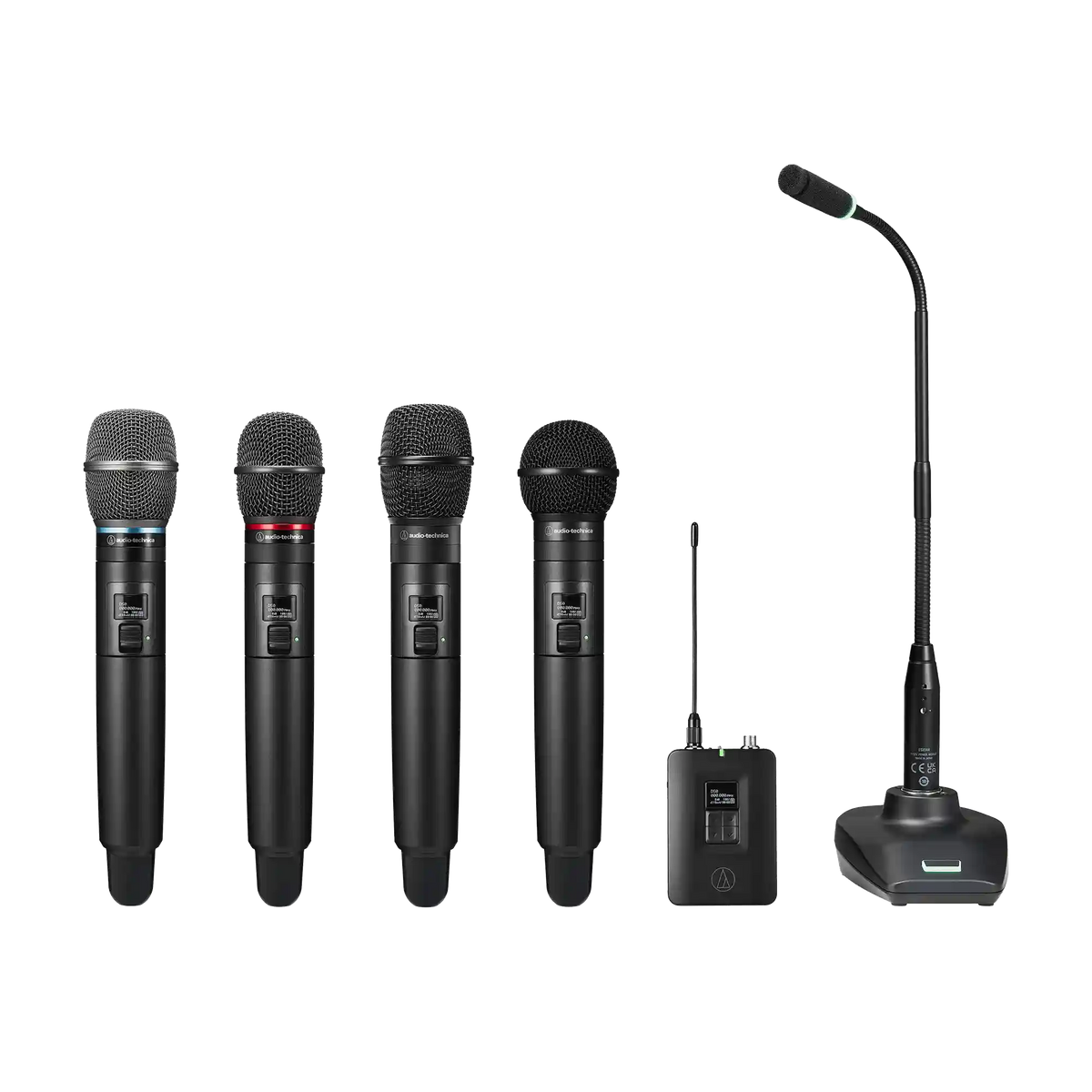

• Handheld transmitter comes with an ATW-C510 cardioid dynamic capsule to deliver proven A-T high-fidelity audio; additional compatible capsules include five A-T models: ATW-C4100, ATW-C6100, ATW-C710, ATW-C3300, and ATW-C5400


• Body-pack and handheld transmitters feature external control buttons, OLED display, and a SideTrack™ function that enables switching between two outputs


• Body-pack and handheld transmitters are each powered by a custom-designed lithium-ion battery for best-in-class battery life and convenient charging in a two-bay charging station (ATW-CHG6) or single/external battery charger (ATW-CHGA6)


• Desk stand transmitter is equipped with a 3-pin XLR-F connector for quick-mount gooseneck microphones, a selectable talk button (toggle mute on/off, press to mute, press to talk), and two LED indicators


• Desk stand transmitter is powered by a built-in lithium-ion battery for best-in-class battery life and convenient charging in an ATW-CHG7 four-bay charging station or via USB-C connection


• Multipoint receiver function allows a transmitter to be detected by multiple D50 networked receivers, with Wireless Manager software automatically switching to the receiver that has the best signal


• Seven-color LEDs on receiver and transmitters, along with physical color rings that attach to the transmitters, make it easy to color code each channel

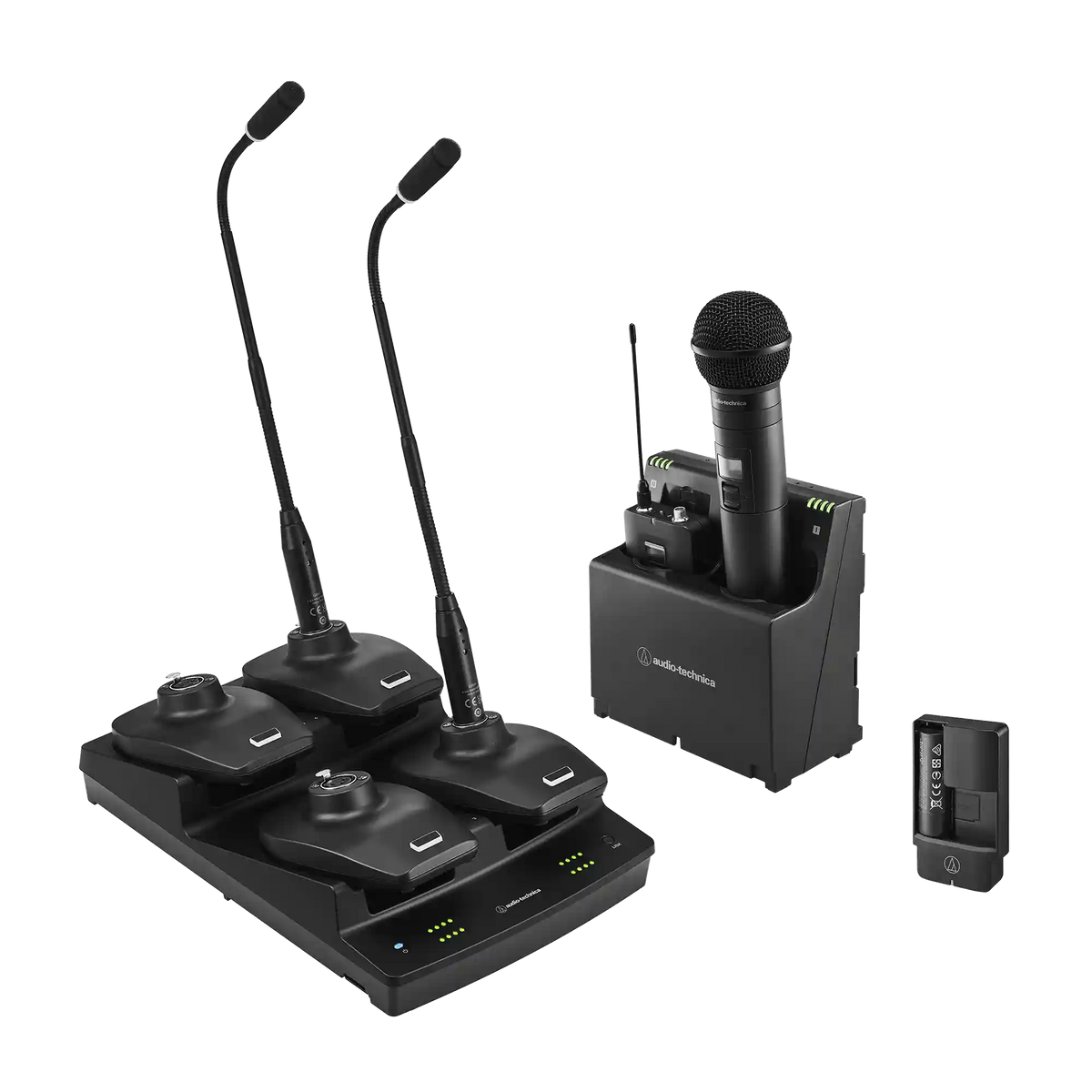

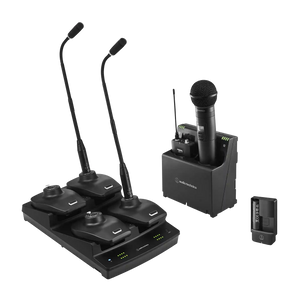

• ATW-CHG6 two-bay charging station (for body-pack or handheld transmitters) can be installed vertically or horizontally in any space, including by mounting to a rack or wall


• ATW-CHGA6 battery charger (for body-pack or handheld lithium-ion batteries) can be inserted into the ATW-CHG6 charging station or be powered by a USB-C cable


• ATW-CHG7 four-bay charging station charges the lithium-ion batteries built into desk stand transmitters


• Best-in-class build quality


• Optional AT8620 rack-mount tray allows three ATW-CHG6 charging stations to be mounted in a 2U space


• TAA-compliant (U.S.); Radio Equipment Directive (RED) cybersecurity-compliant (EU)


• Firmware updates are performed in Wireless Manager software
