BP3600

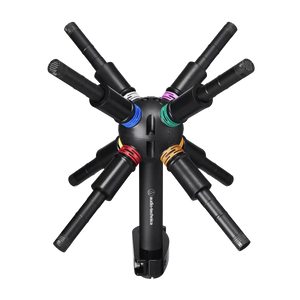

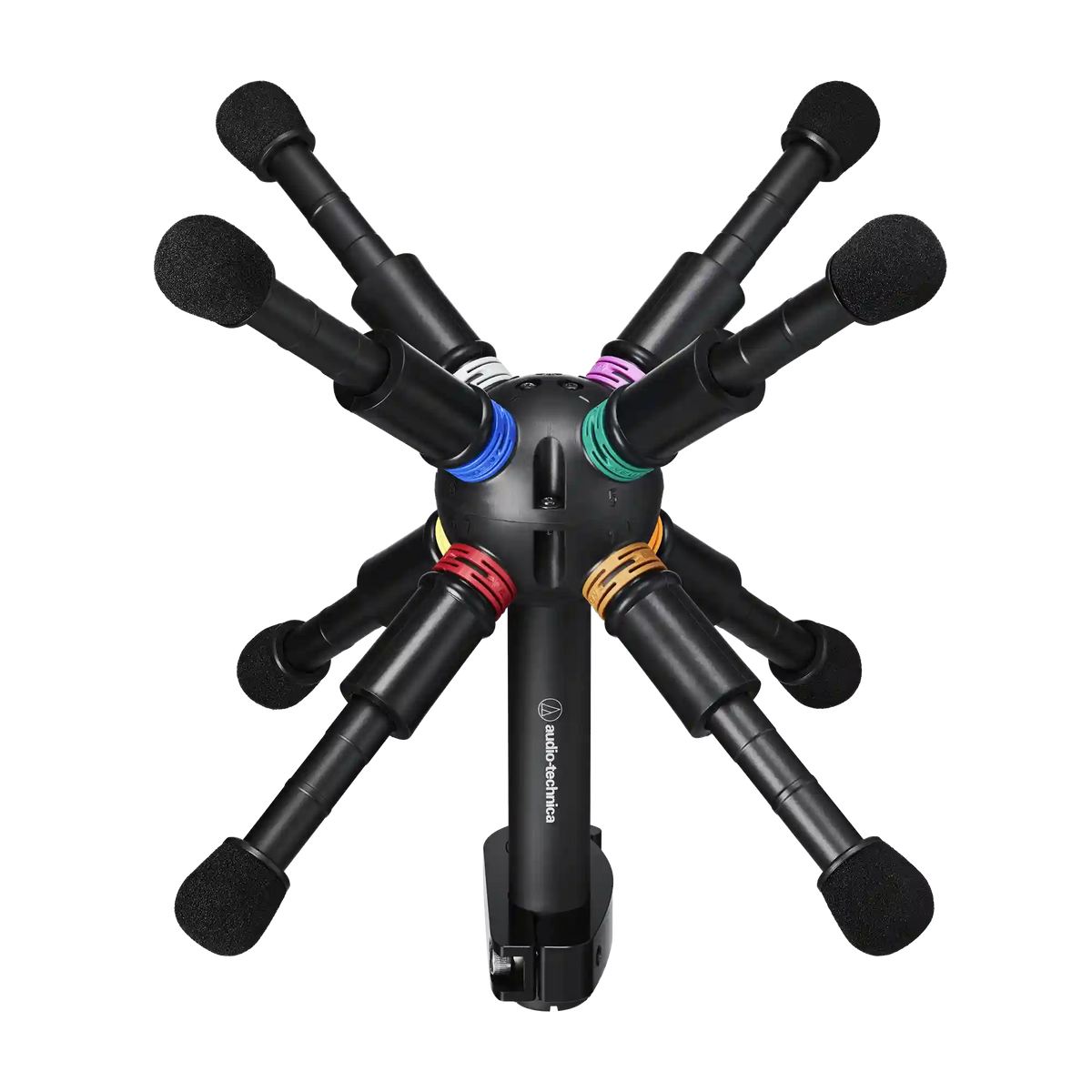

Capture stable, three-dimensional sound beds at sporting events, movie sets, concerts, festivals and more with the BP3600 immersive audio microphone. This practical, state-of-the-art broadcast solution allows you to establish a truly immersive audio image that can be integrated easily as an audio channel bed into immersive audio codecs like MPEG-H 3D Audio without further processing. The BP3600 consists of eight 3.5" (8.8 cm) long microphone assemblies that extend to form a cube, the capsules equidistant from the center and separated from one another by 15 cm. This eight-channel near-coincident array provides ample spaciousness and controlled separation not found in other all-in-one immersive audio microphones.

• The BP3600 immersive audio microphone is a practical, state-of-the-art broadcast solution for capturing ambient sound beds at sporting events, movie sets, concerts, festivals and more


• Captured audio image can be integrated easily as an audio channel bed into immersive audio codecs like MPEG-H 3D Audio without further processing


• 8 microphone assemblies attach and detach quickly from the main unit for easy setup and teardown


• 12 mm hypercardioid capsules keep the microphone small for discreet placement, while providing low diffuse-field correlation between signals


• Color-coded and numbered rings provide easy channel reference for each of the eight microphones


• Water protection caps guard TA3F microphone connectors against inclement weather


• A safety ring provides additional security when suspending the microphone above spectators in grandstands, stadiums or auditoriums


• 16-pin LEMO output connector is situated at the end of the microphone’s grip for easy attachment of the included breakout cable or extension cables (available separately)

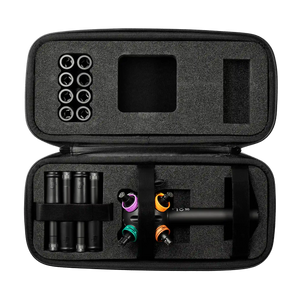

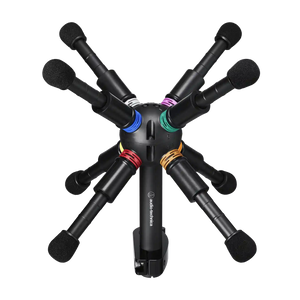

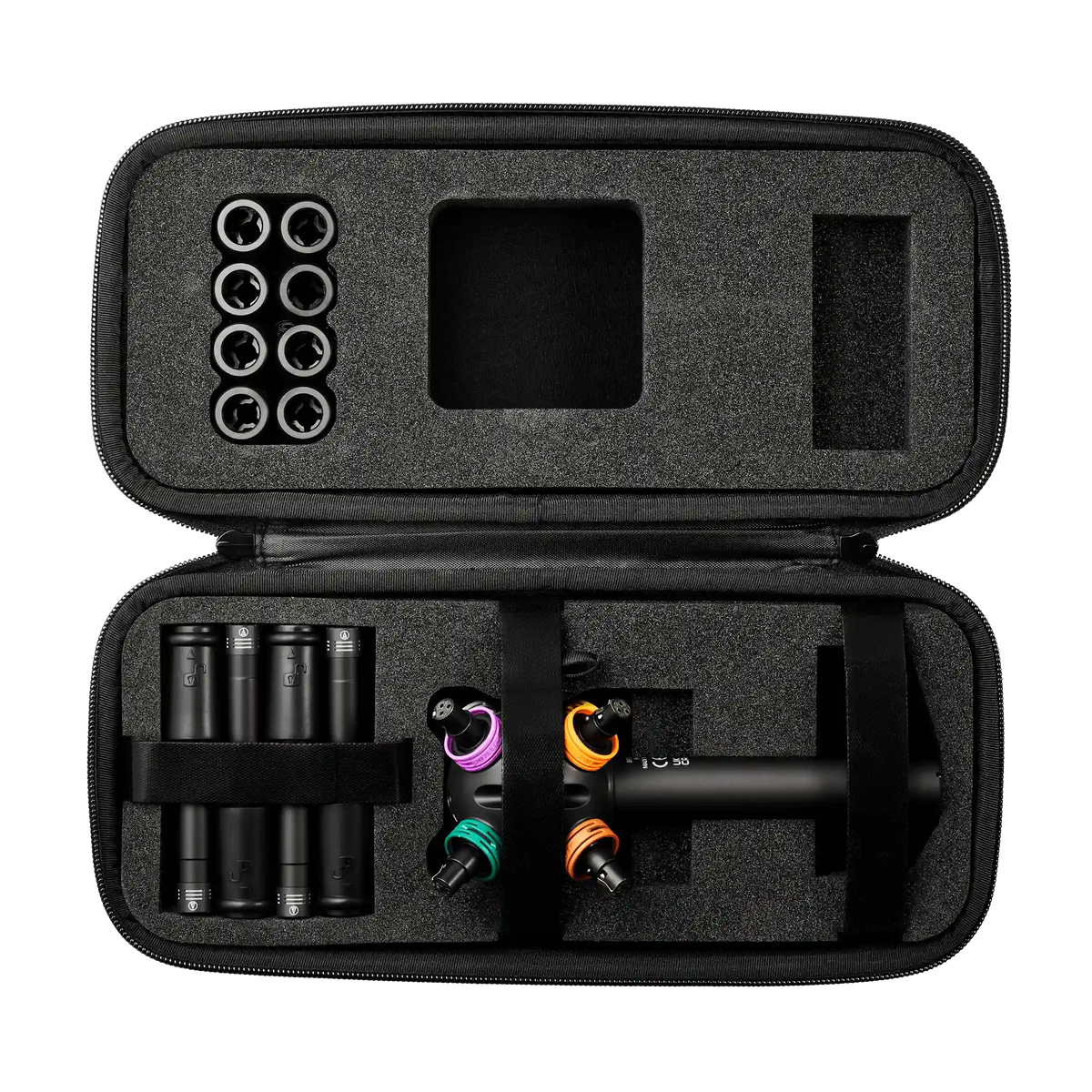

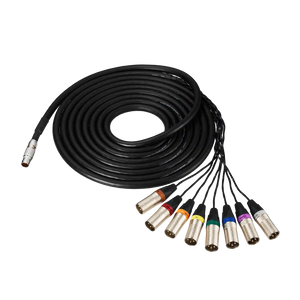

• Includes AT8177 windscreen (x 8), mic isolation stand clamp, 5/8"-27 to 3/8"-16 threaded adapter, 5 m (16.4') LEMO-to-XLRM (x 8) breakout cable, soft carrying case

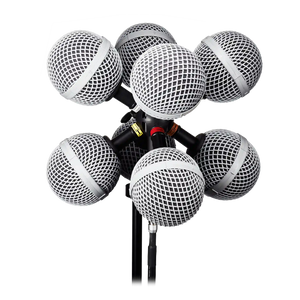

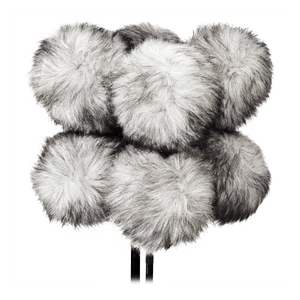

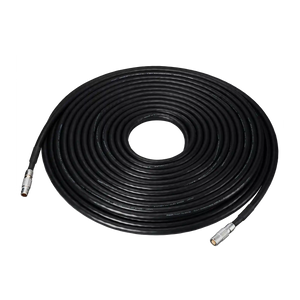

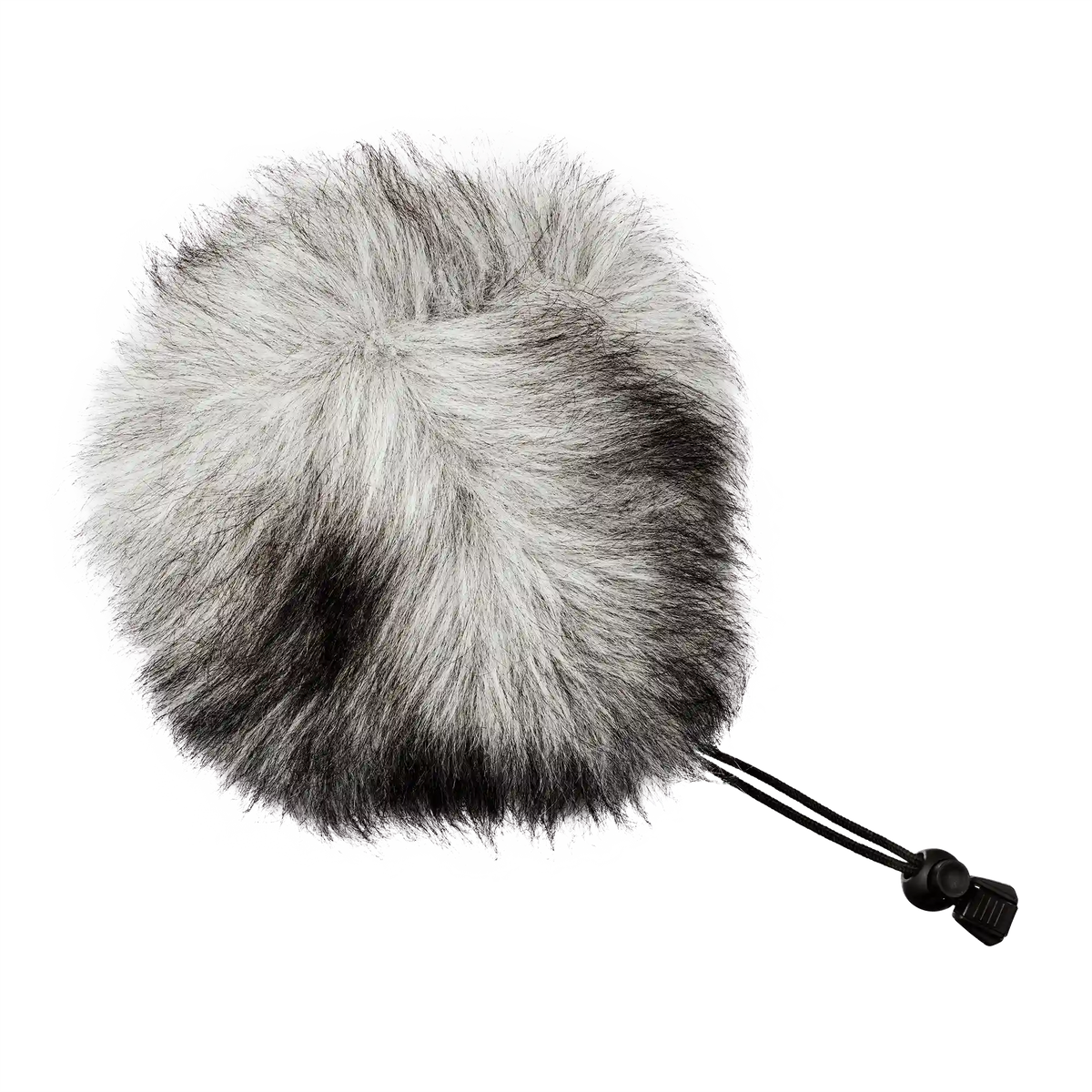

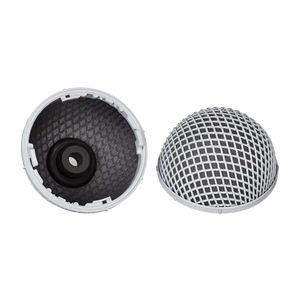

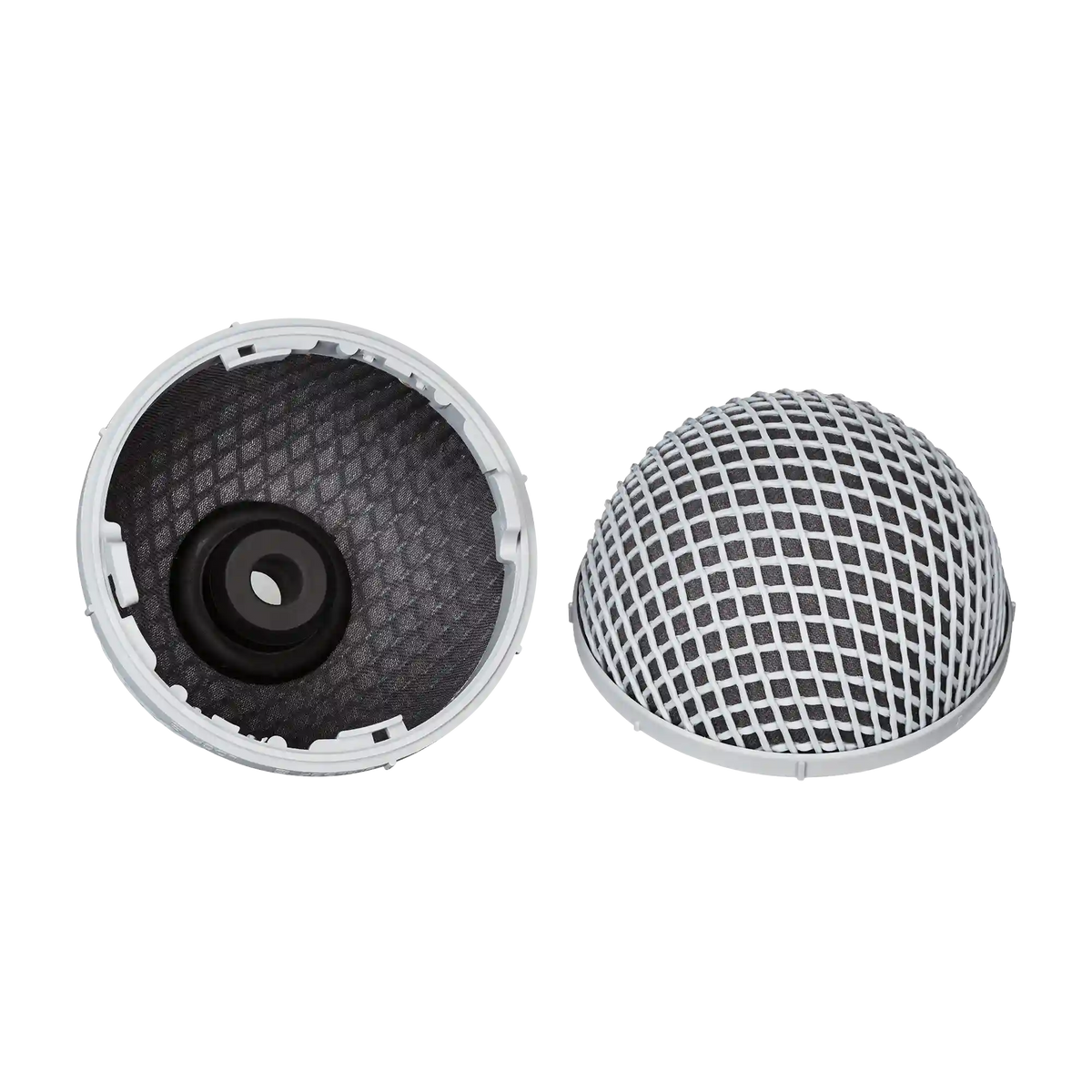

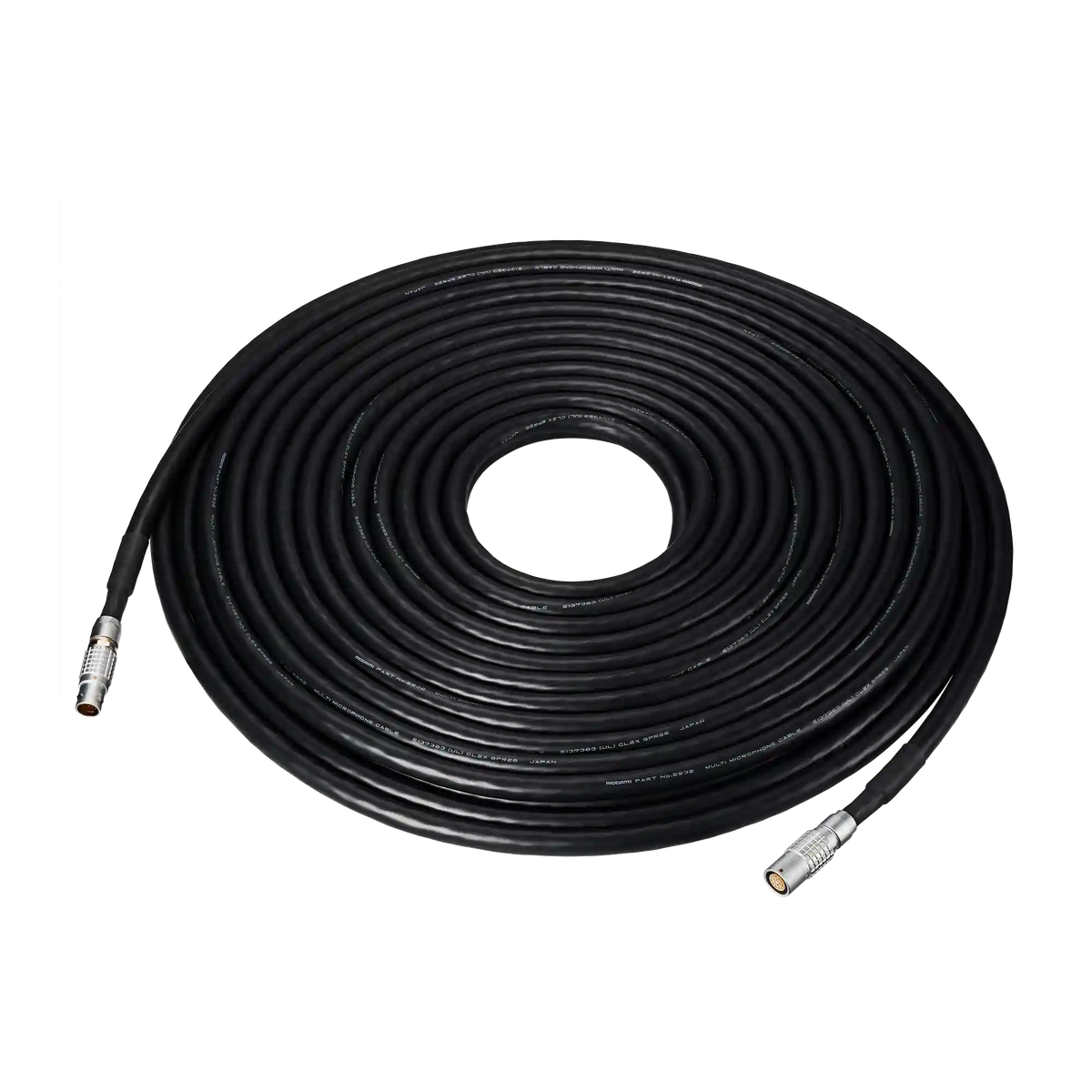

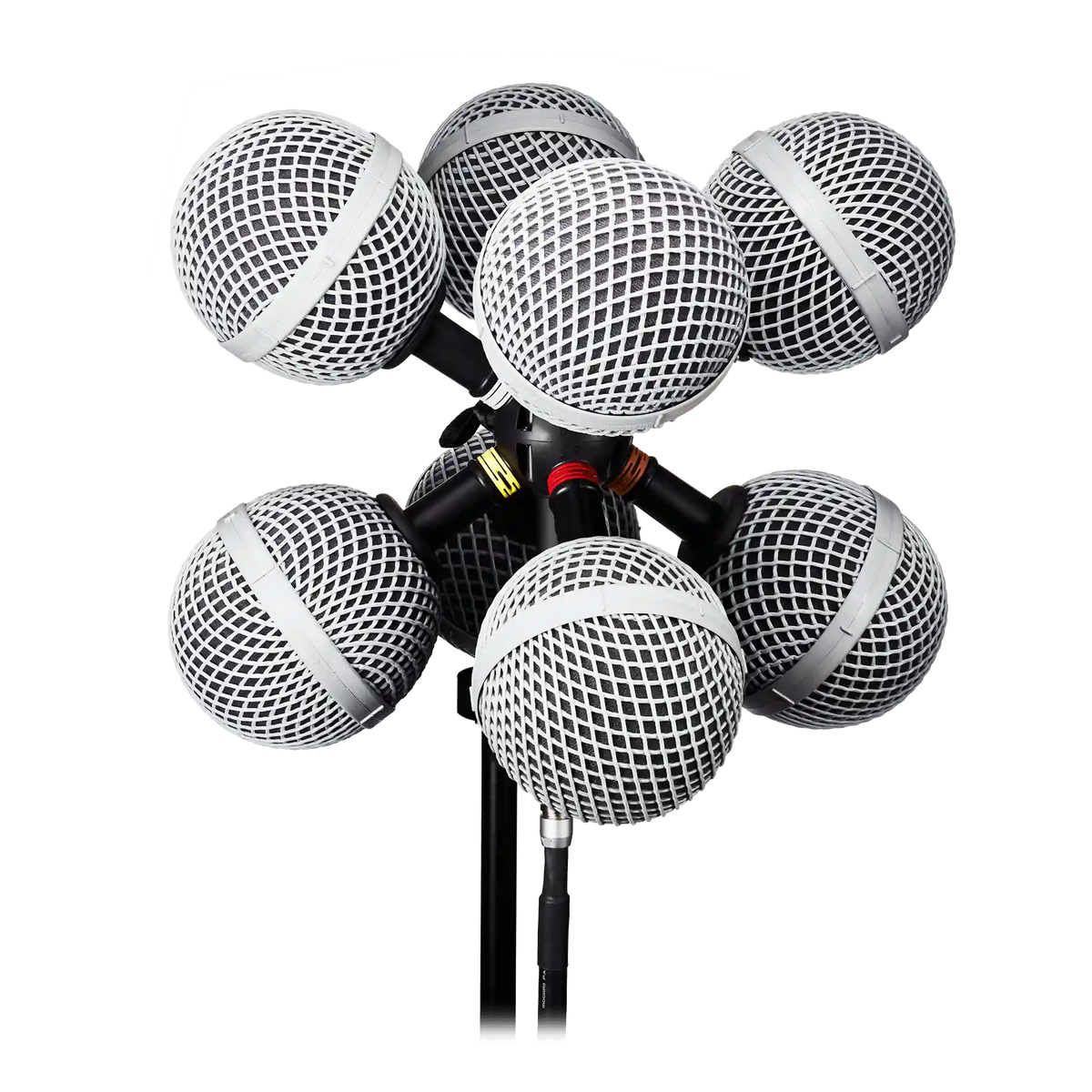

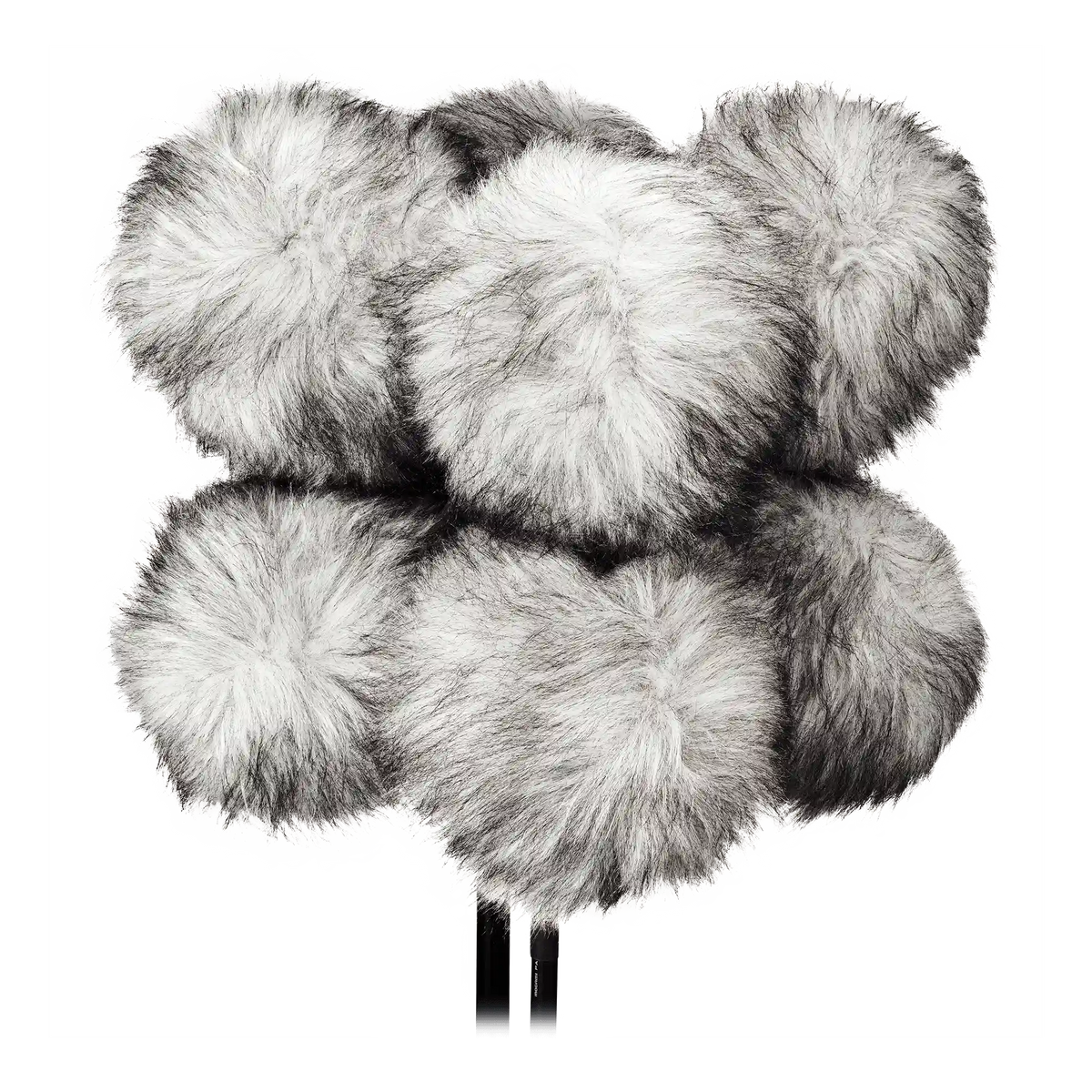

• Optional accessories – Rycote BBG Windshields, Rycote BBG Windjammers, and 20 m (16.4' and 65.6') LEMO-to-LEMO extension cables – are available separately


• Requires 48V DC phantom power per channel
