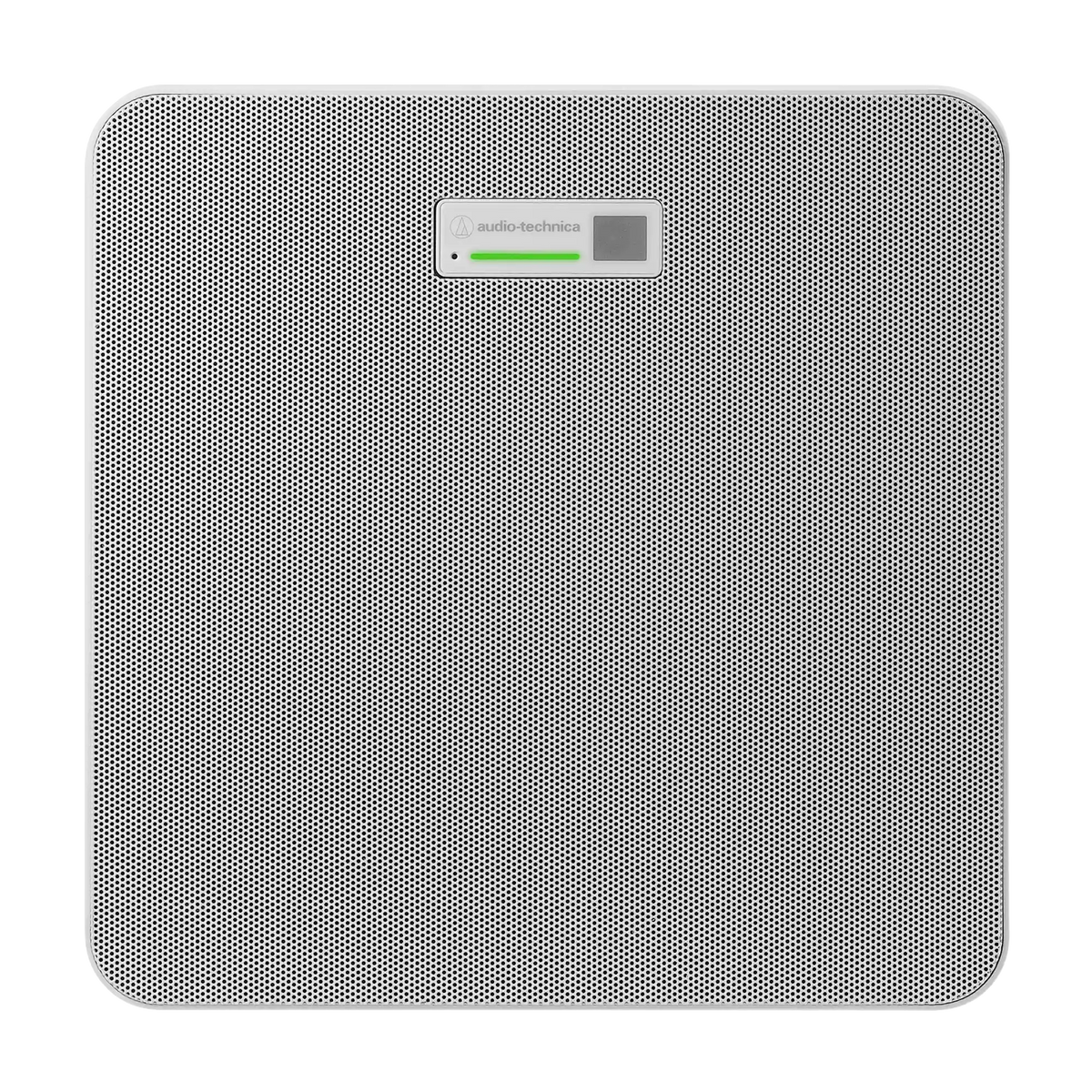

ATND1061

The ATND1061 beamforming microphone array is available in two configurations:
ATND1061DAN – Dante™-enabled
ATND1061LK – Audio-Technica LINK enabled

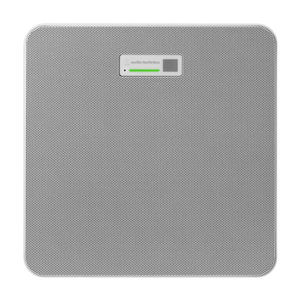

The Audio-Technica ATND1061 Beamforming Ceiling Array Microphone delivers high-quality audio clarity, dependable performance, and easy AV integration for corporate conferencing, classrooms, and hybrid workspaces.

Digital Microphone Manager software easily configures single or multiple ATND1061 microphone settings.

•
  This Product is TAA-Compliant Learn More About TAA-Compliance

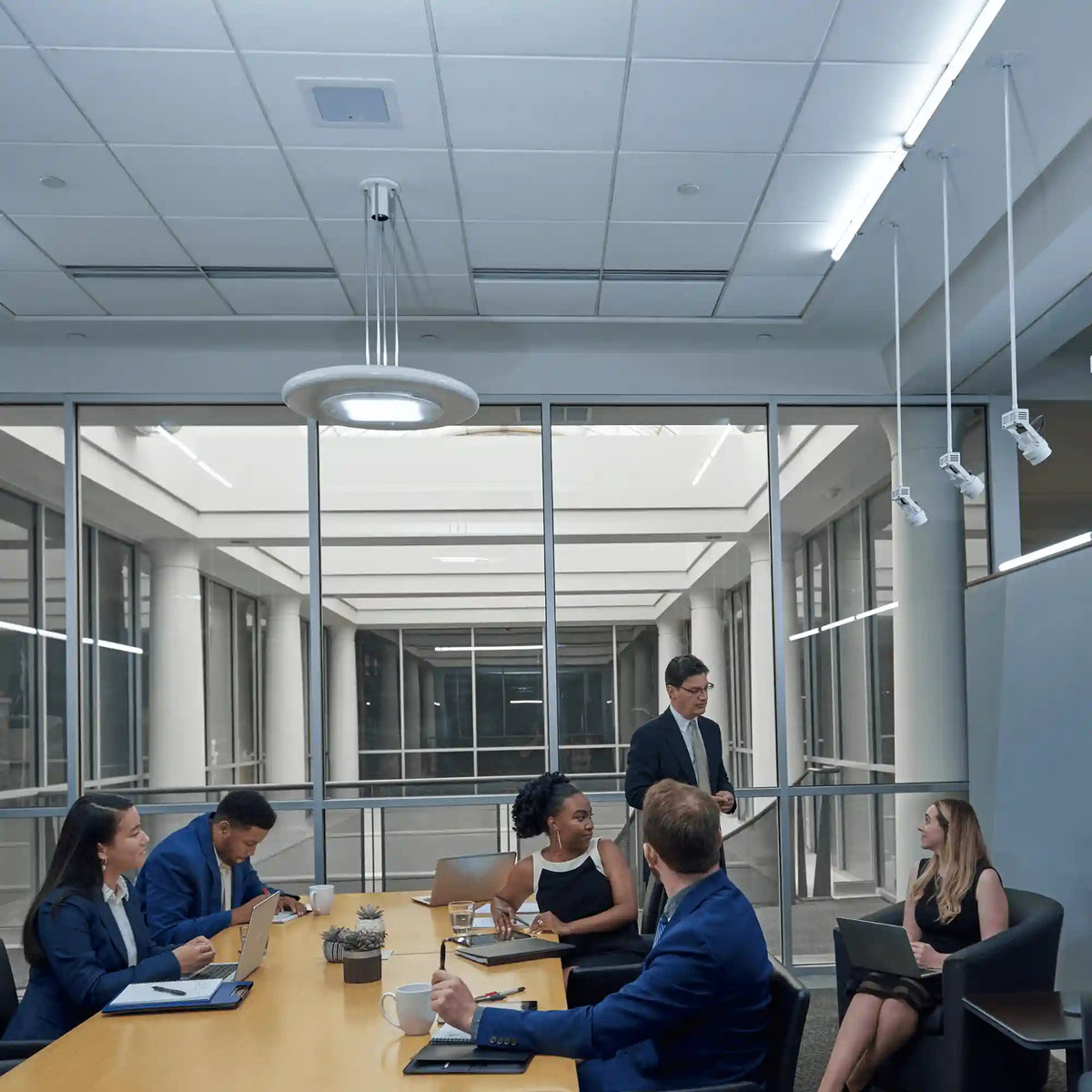

• The ATND1061 beamforming microphone array is an ideal solution for conference rooms, boardrooms, and meeting spaces large and small


• Advanced beamforming for precise voice capture


• Integrated DSP with automix, AEC, noise reduction, automatic gain control, 4-band EQ


• Coverage and Priority Zones for customizable audio pickup


• Easy installation with Dante and Audio-Technica LINK compatibility


• IR remote included for muting and preset management


• The ATND1061 beamforming microphone array is available in two configurations:
  ATND1061DAN – Dante™-enabled
  ATND1061LK – Audio-Technica LINK enabled


• ATND1061 is enabled with VISCA over IP to control PTZ (pan-tilt-zoom) cameras and other video equipment over a network and sync with microphone audio


• ATND1061 is equipped with voice lift technology that allows everyone in a large meeting space to hear equally well – regardless of how far away they are from the person speaking


• Powerful onboard DSP: automix, acoustic echo cancelation, noise reduction, automatic gain control, and 4-band EQ


• User-friendly Digital Microphone Manager software easily configures single or multiple ATND1061 microphone settings


• Six individual output channels with up to 32 user-defined microphone pickup zones provide the flexibility to cover a wide variety of room sizes and meeting types


• Output Channel 1 can be configured with up to 16 user-defined Coverage Zones to ensure coverage of nonpriority or unplanned participants


• Output Channels 2–6 can be configured with up to 16 user-defined Priority Zones to ensure priority pickup of participants in known locations


• Proprietary voice activity detection (VAD) technology enables the microphone to discern between a voice and unwanted noises such as paper shuffling


• Exclusion zones can be set in the software to avoid known sources of unwanted noise (such as air-handling systems)

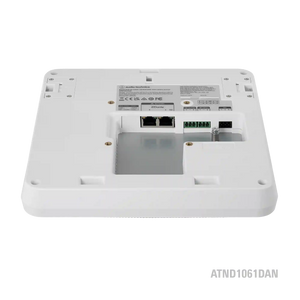

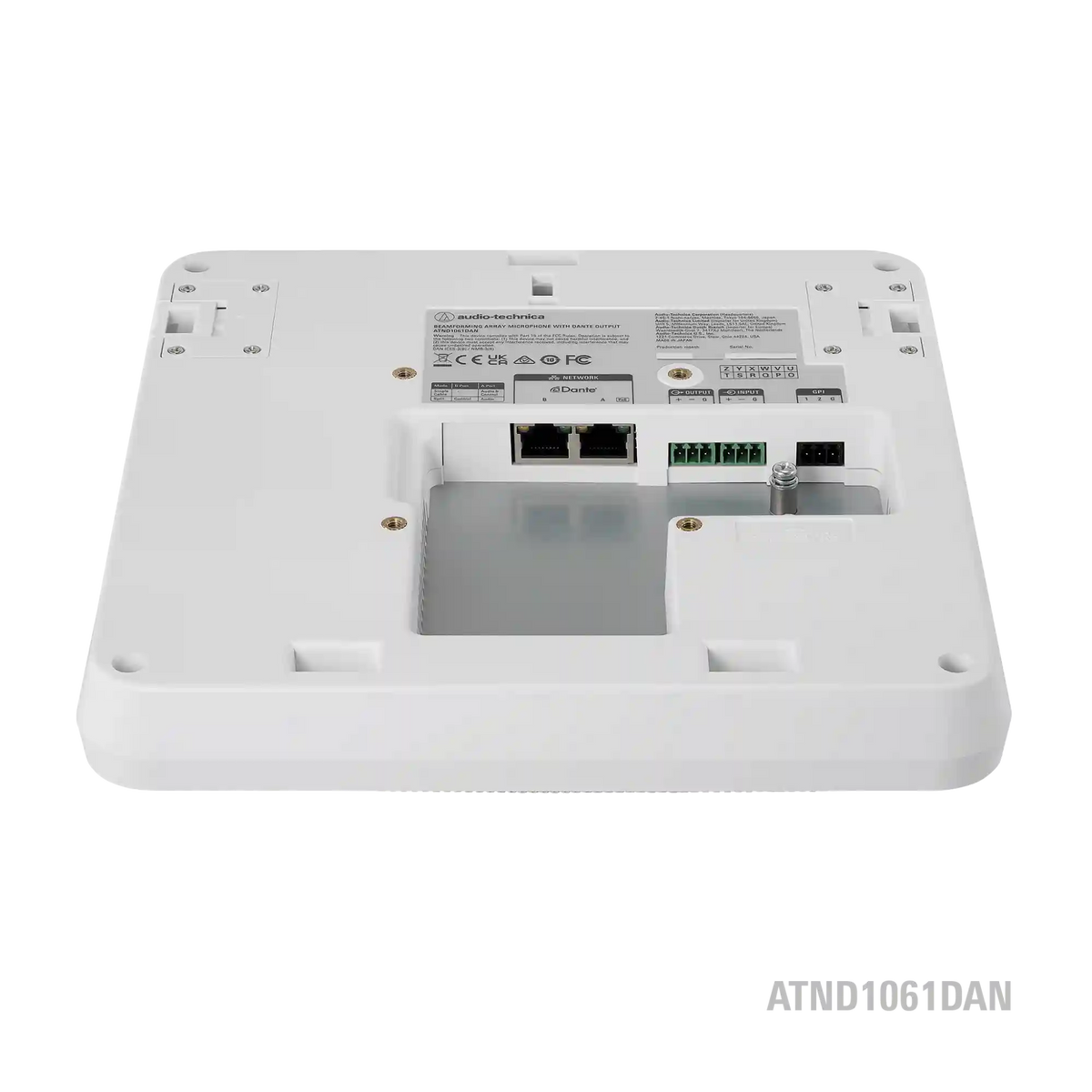

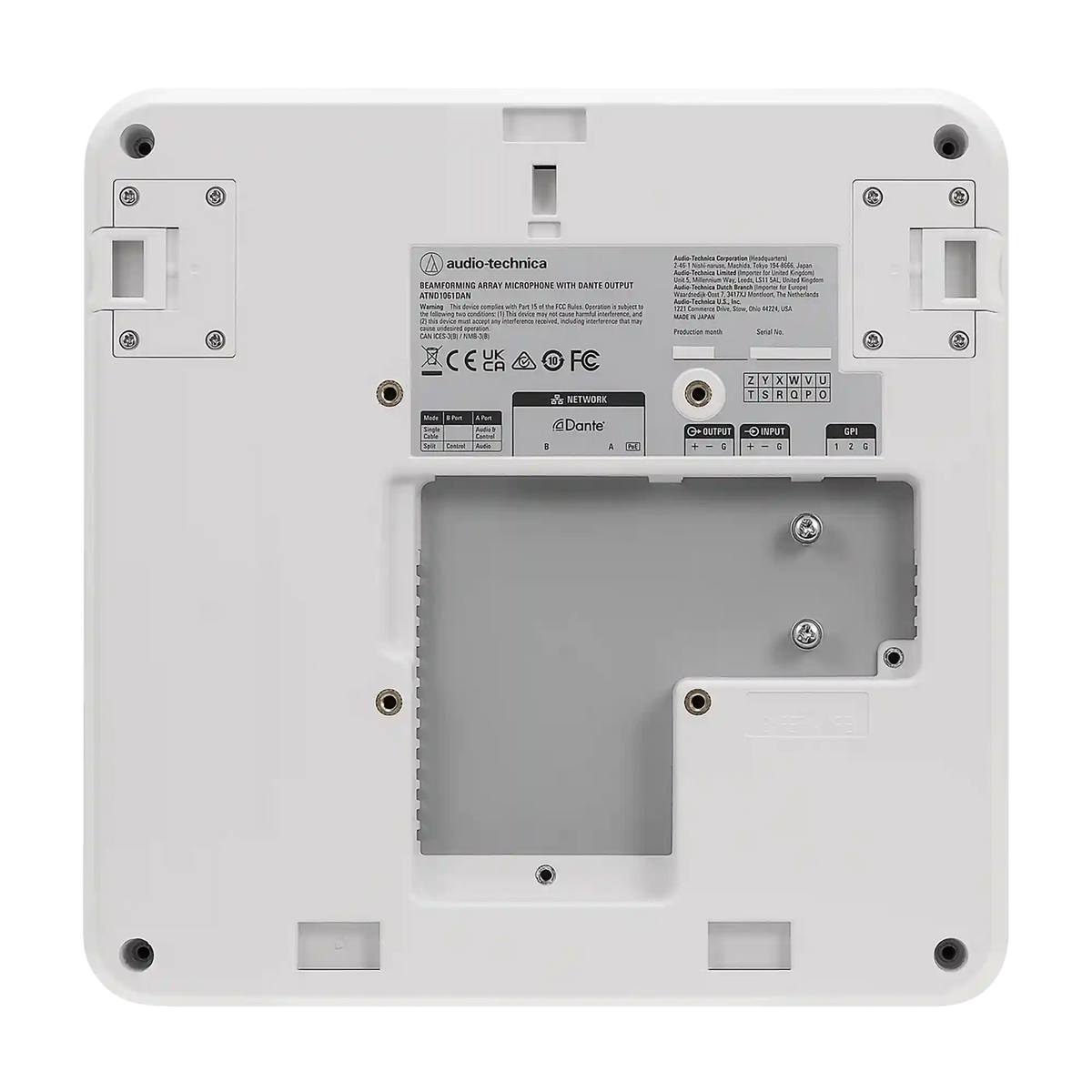

• Two network ports with Single Cable and Split modes to send Dante audio and microphone control data together or separately over category cable (ATND1061DAN)

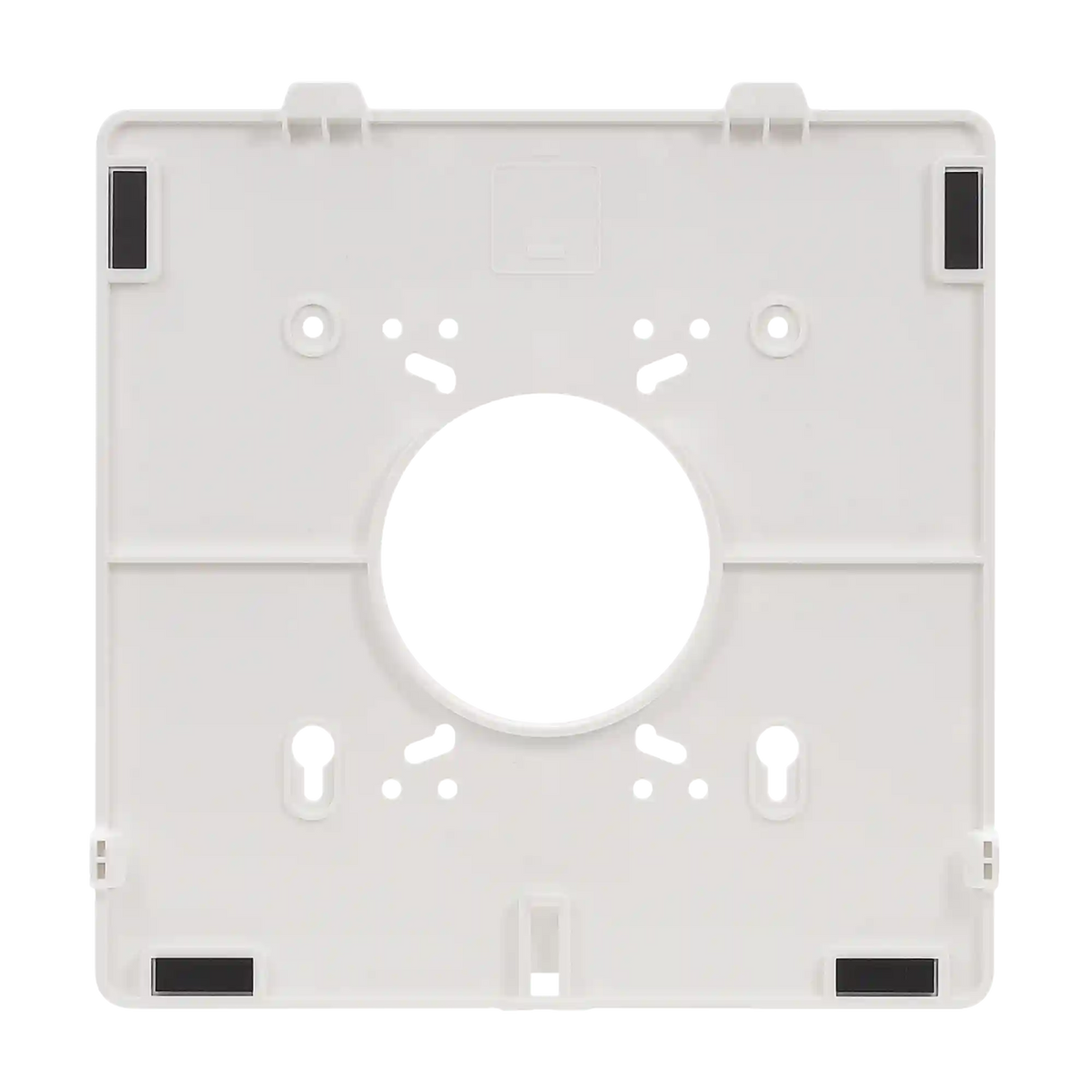

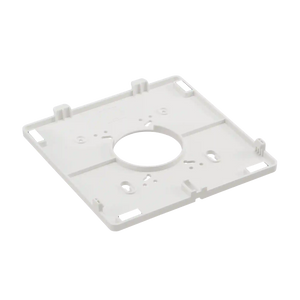

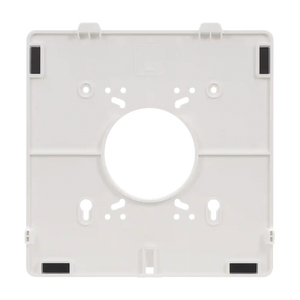

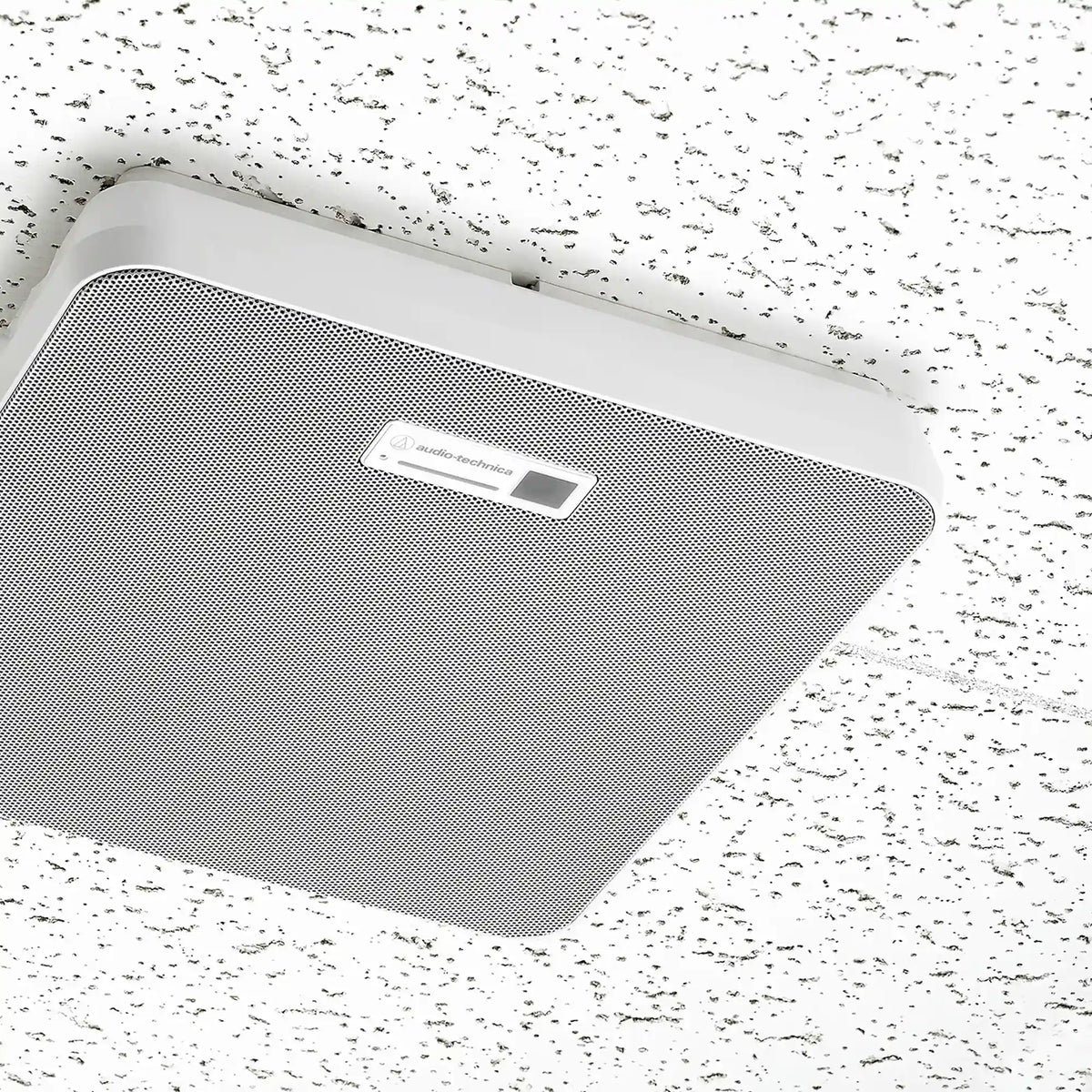

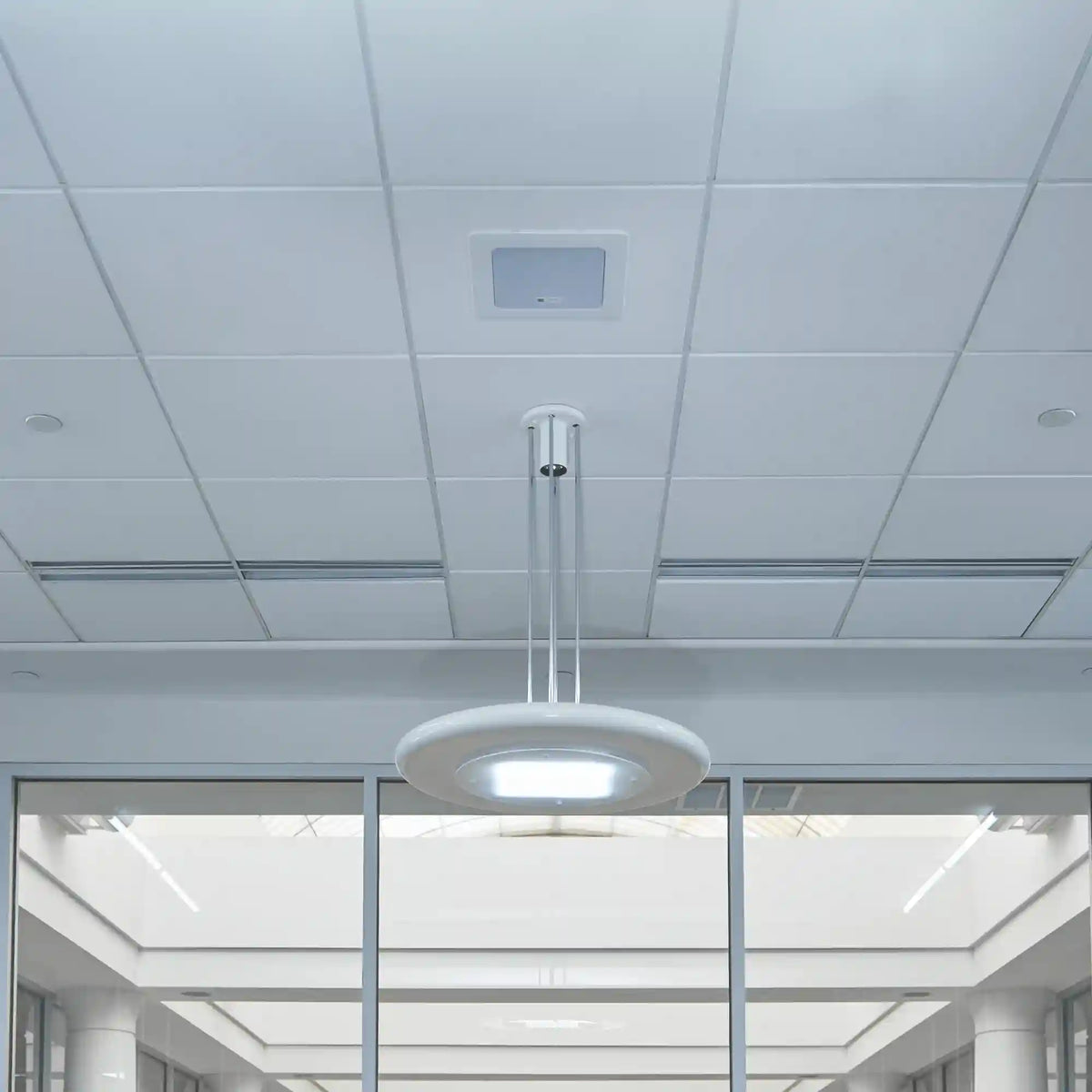

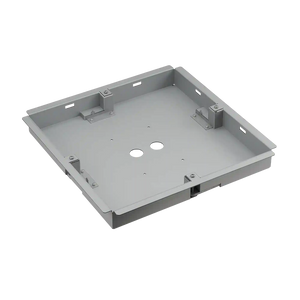

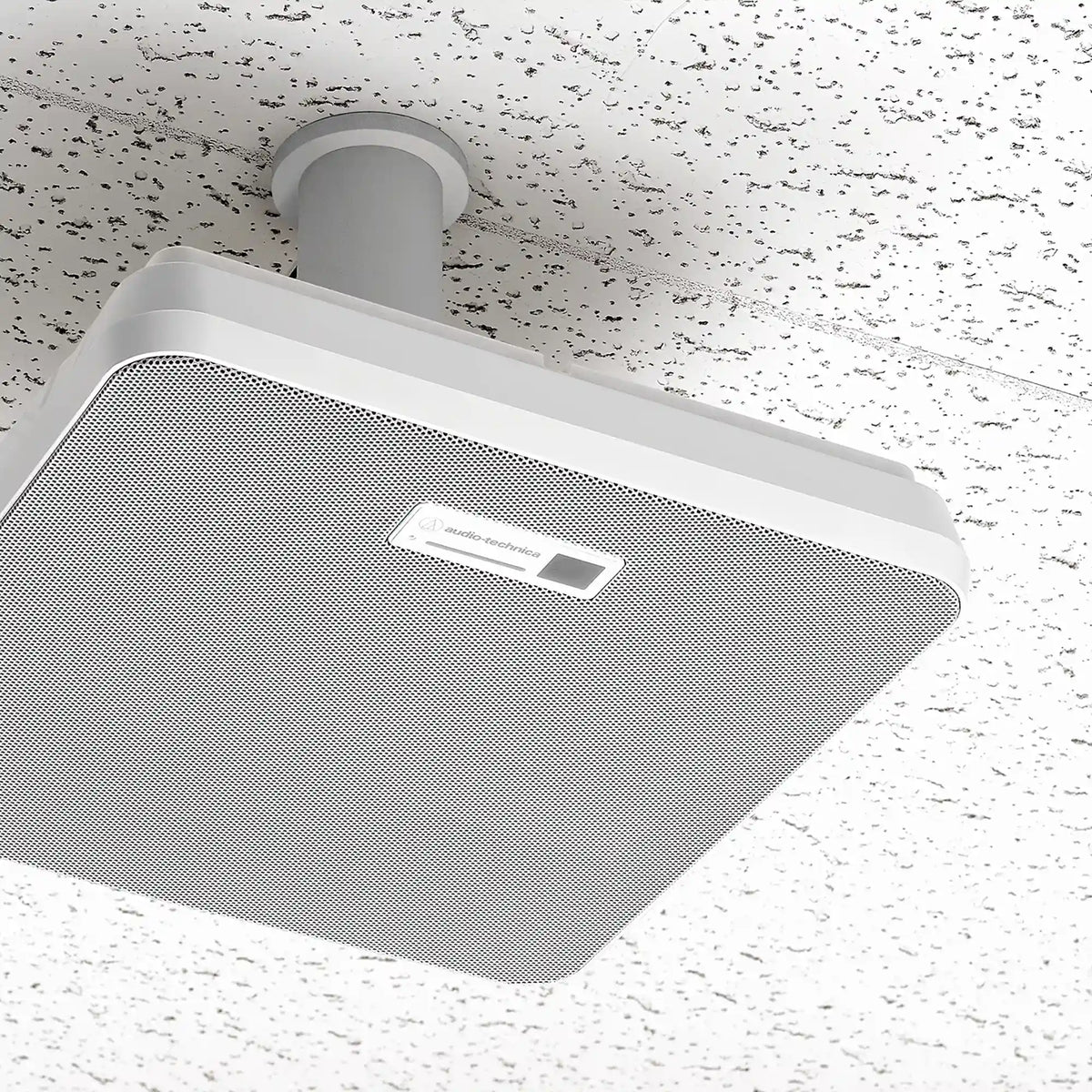

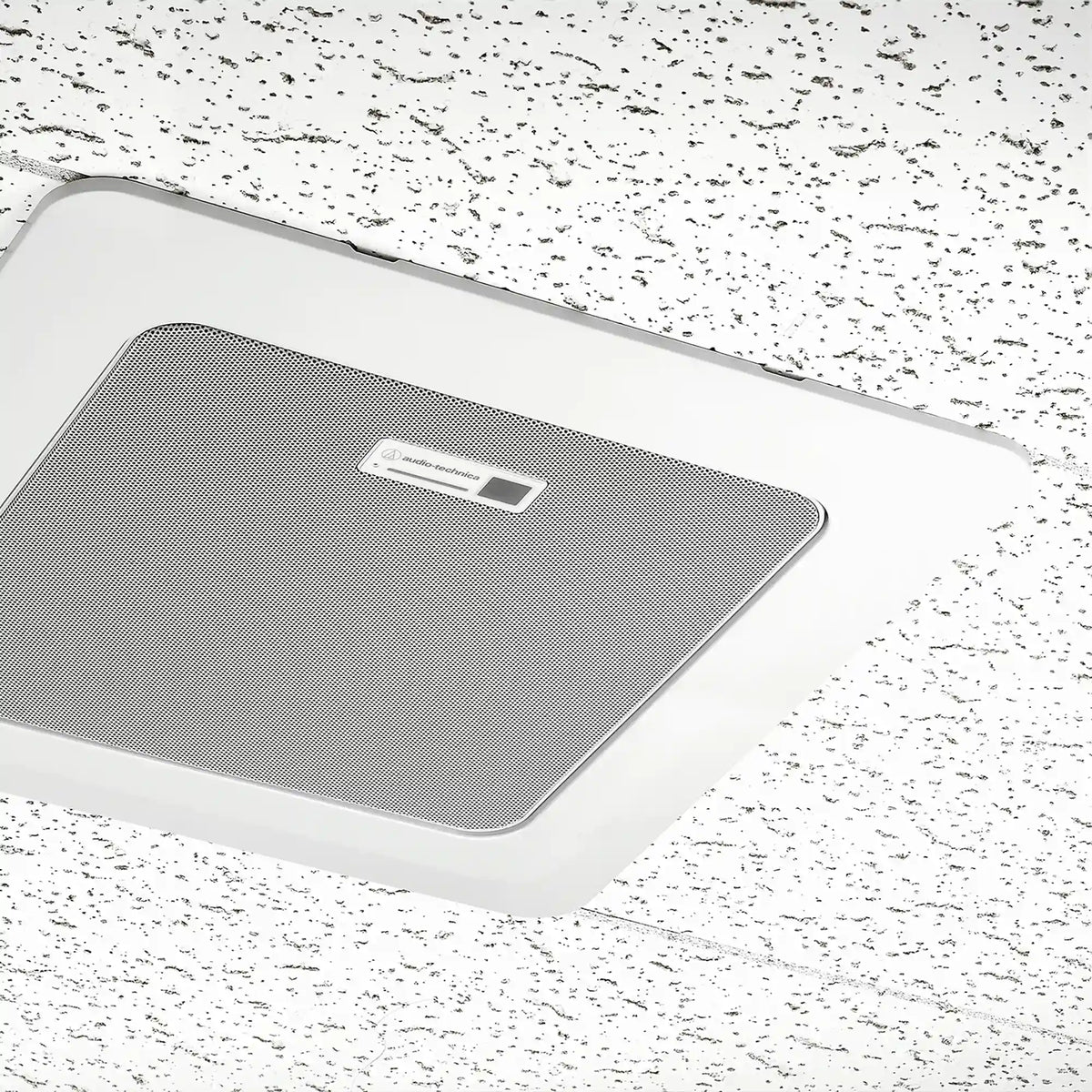

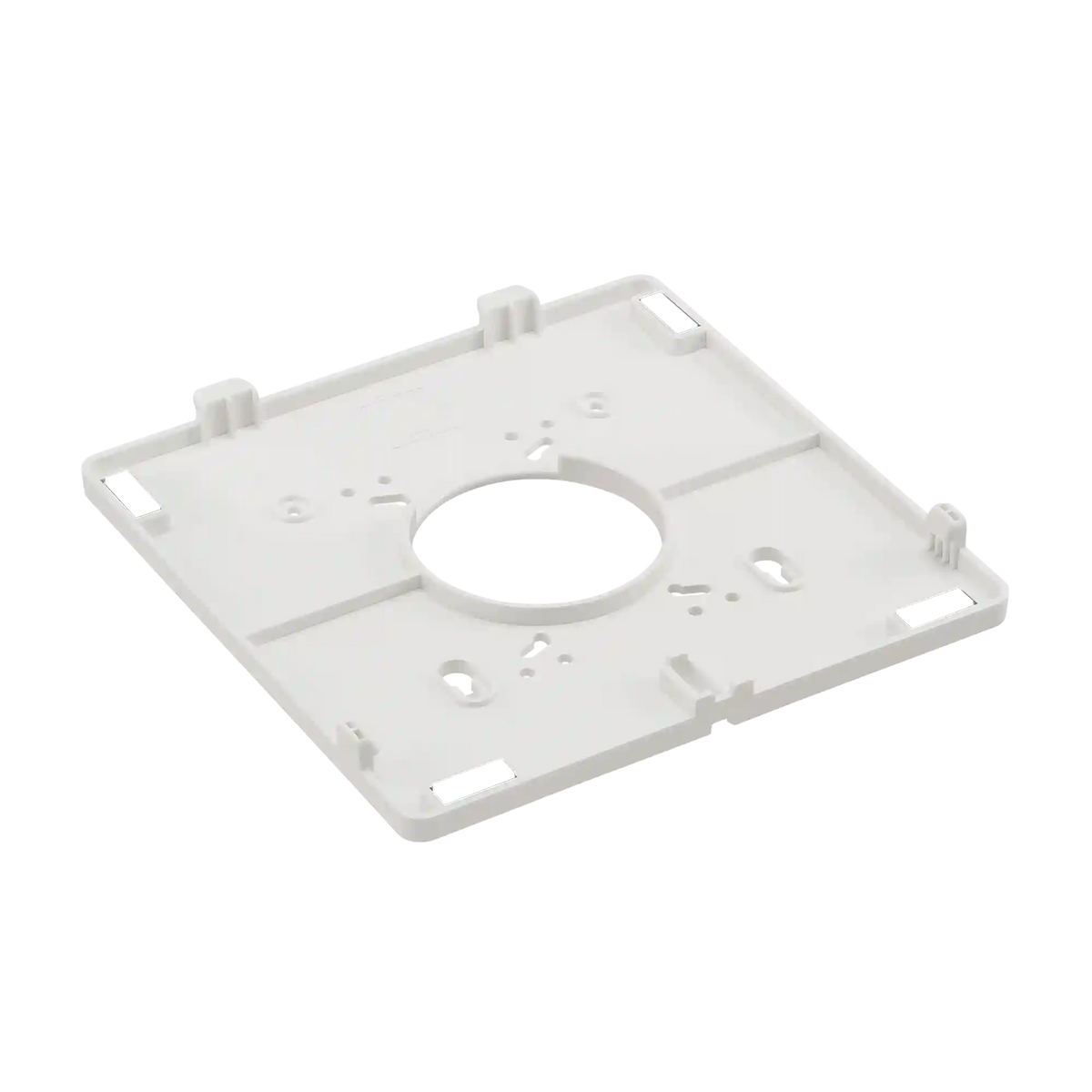

• Mounts flush or on the surface of a drop ceiling or hard ceiling, or in open architecture spaces using VESA mount


• UL 2043 compliant for installation in plenum spaces

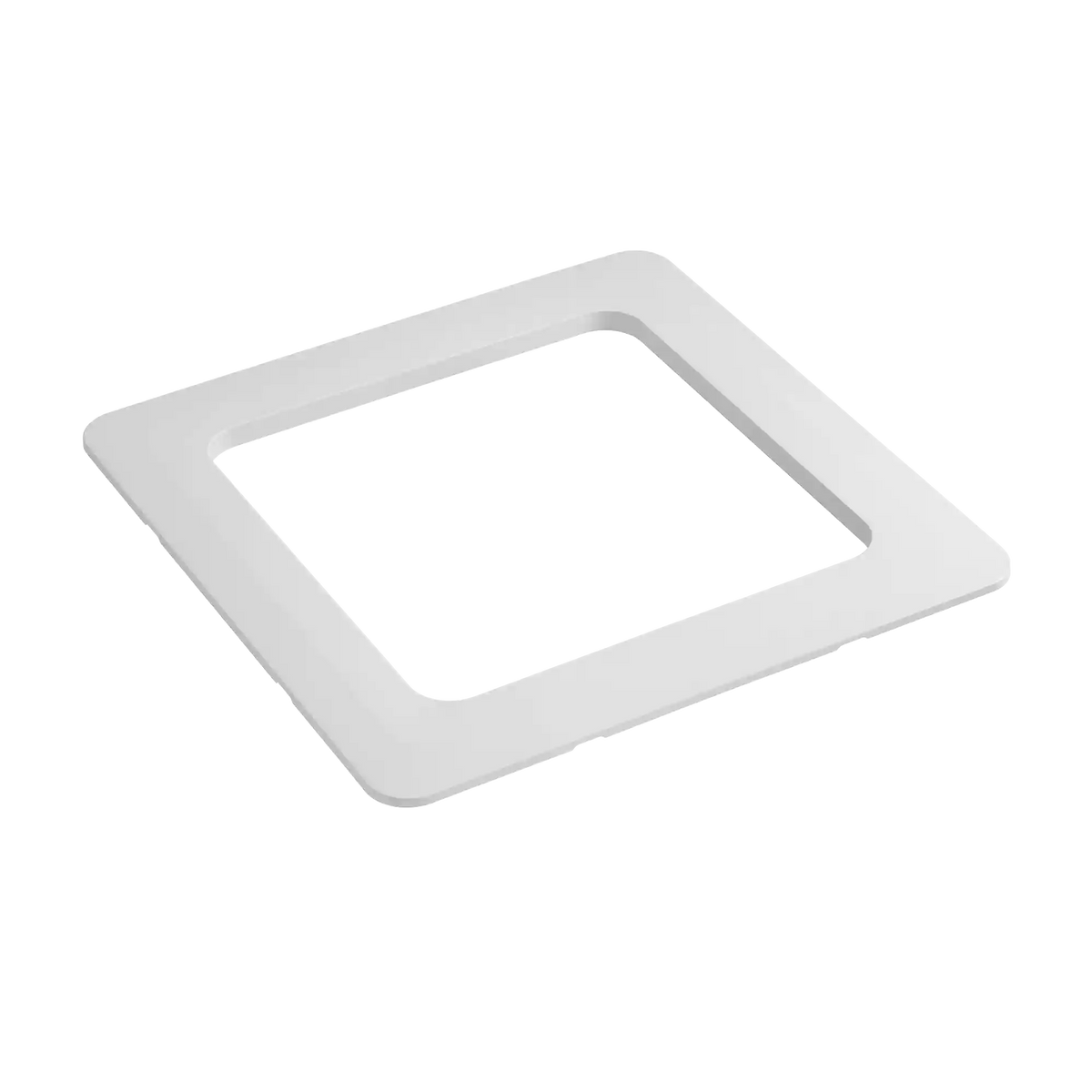

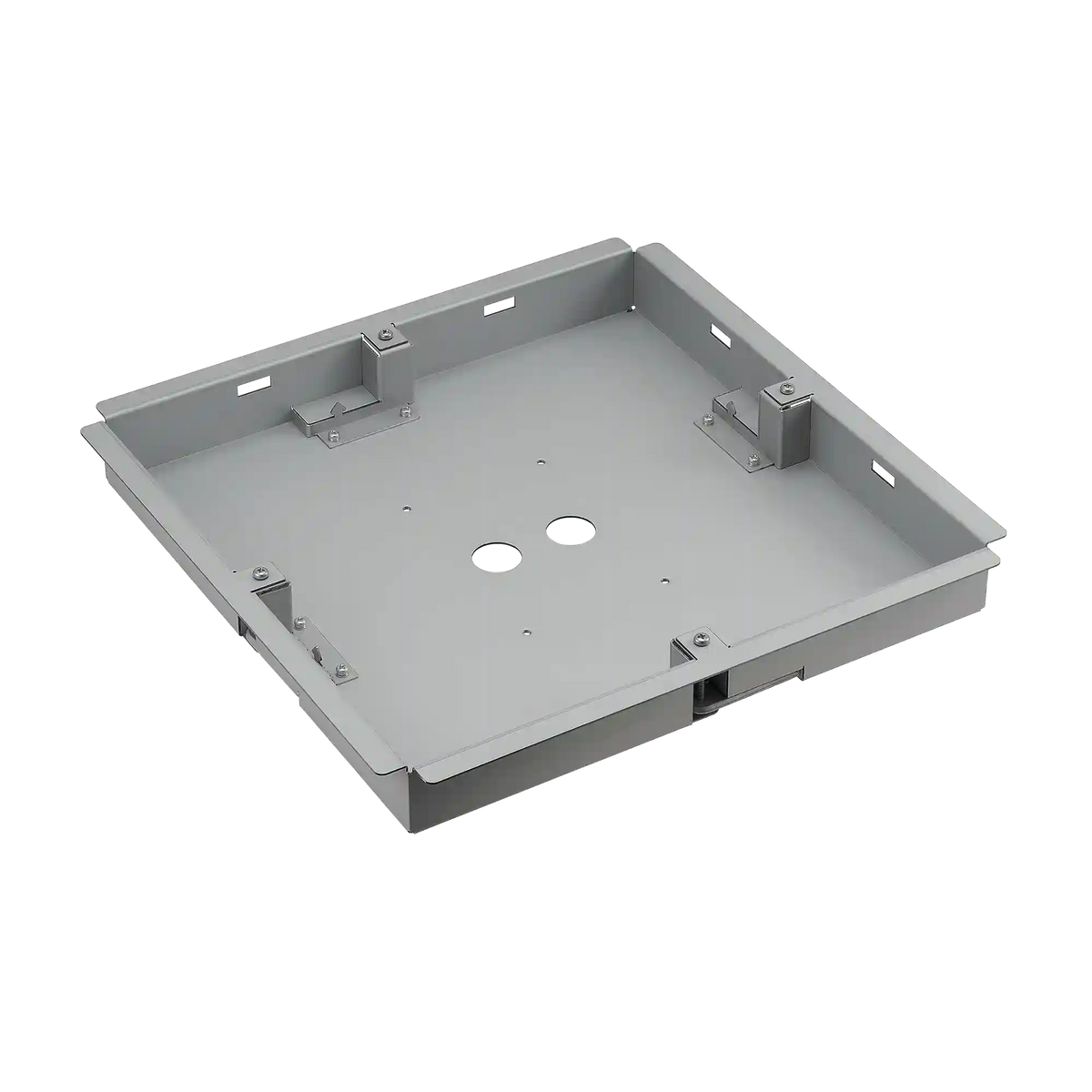

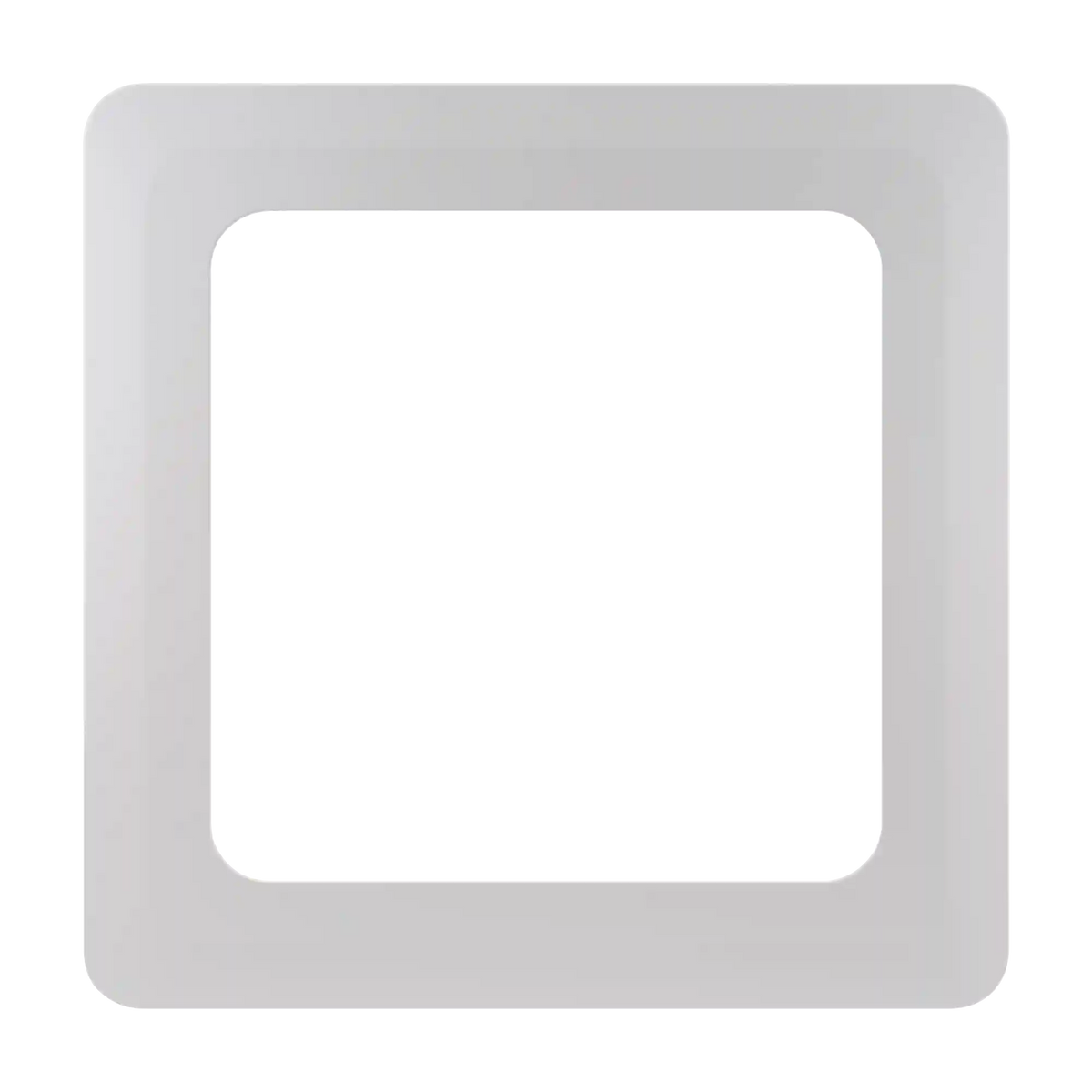

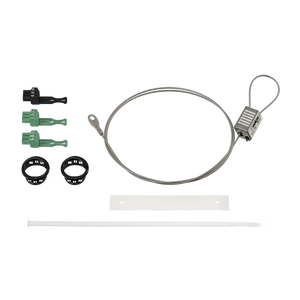

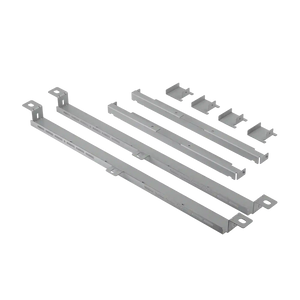

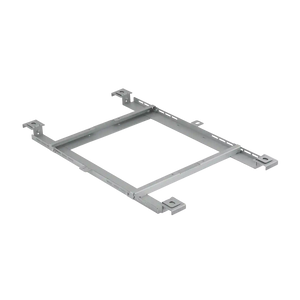

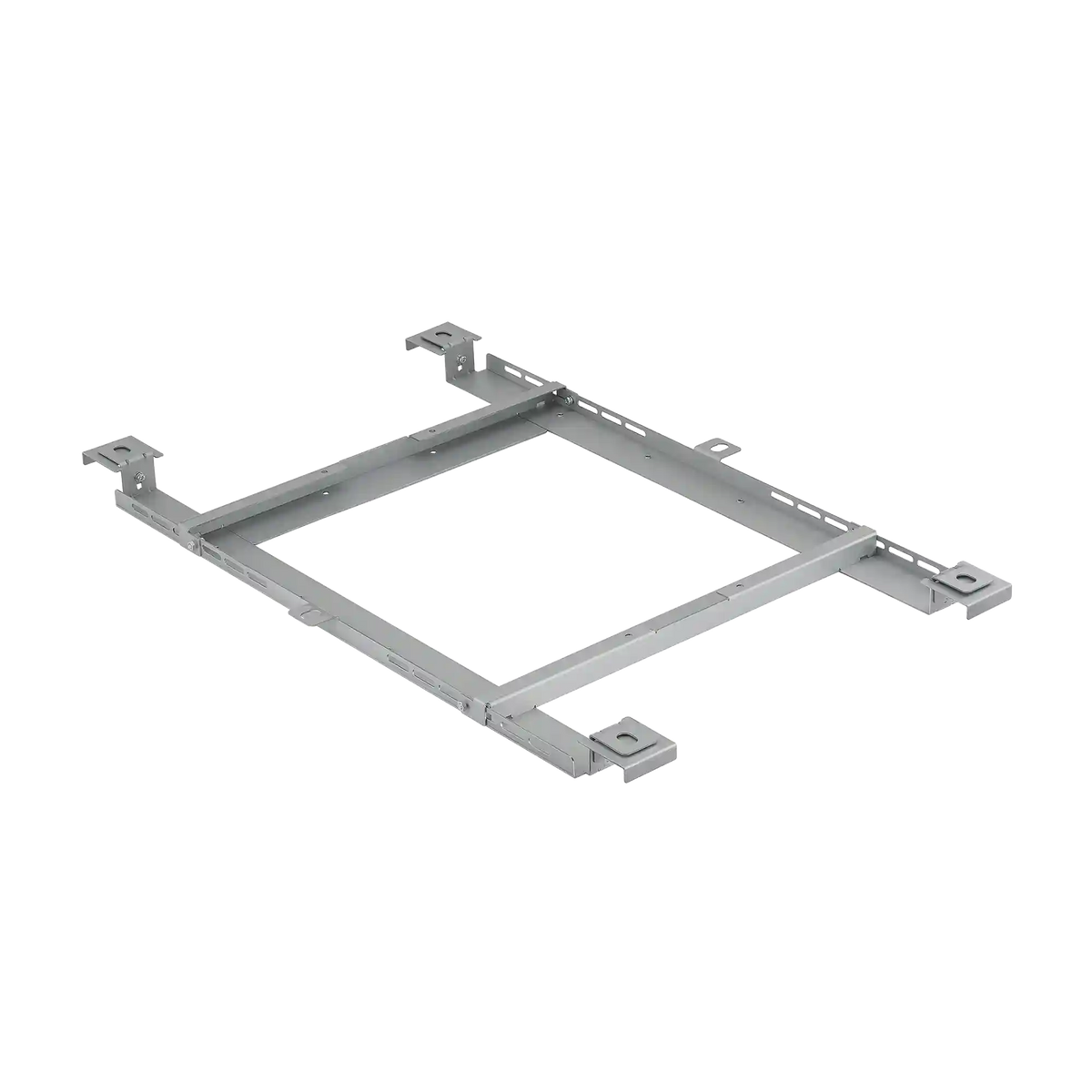

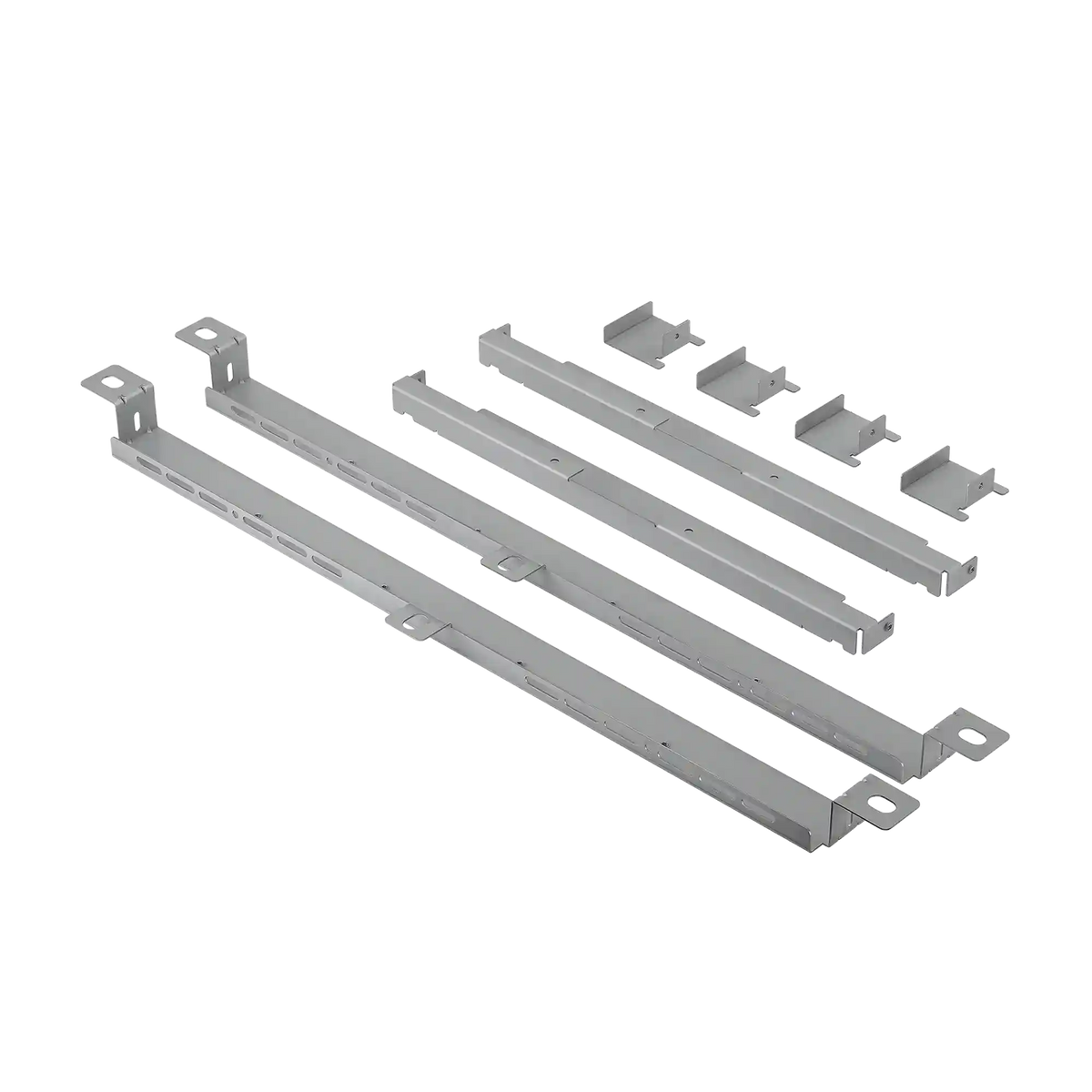

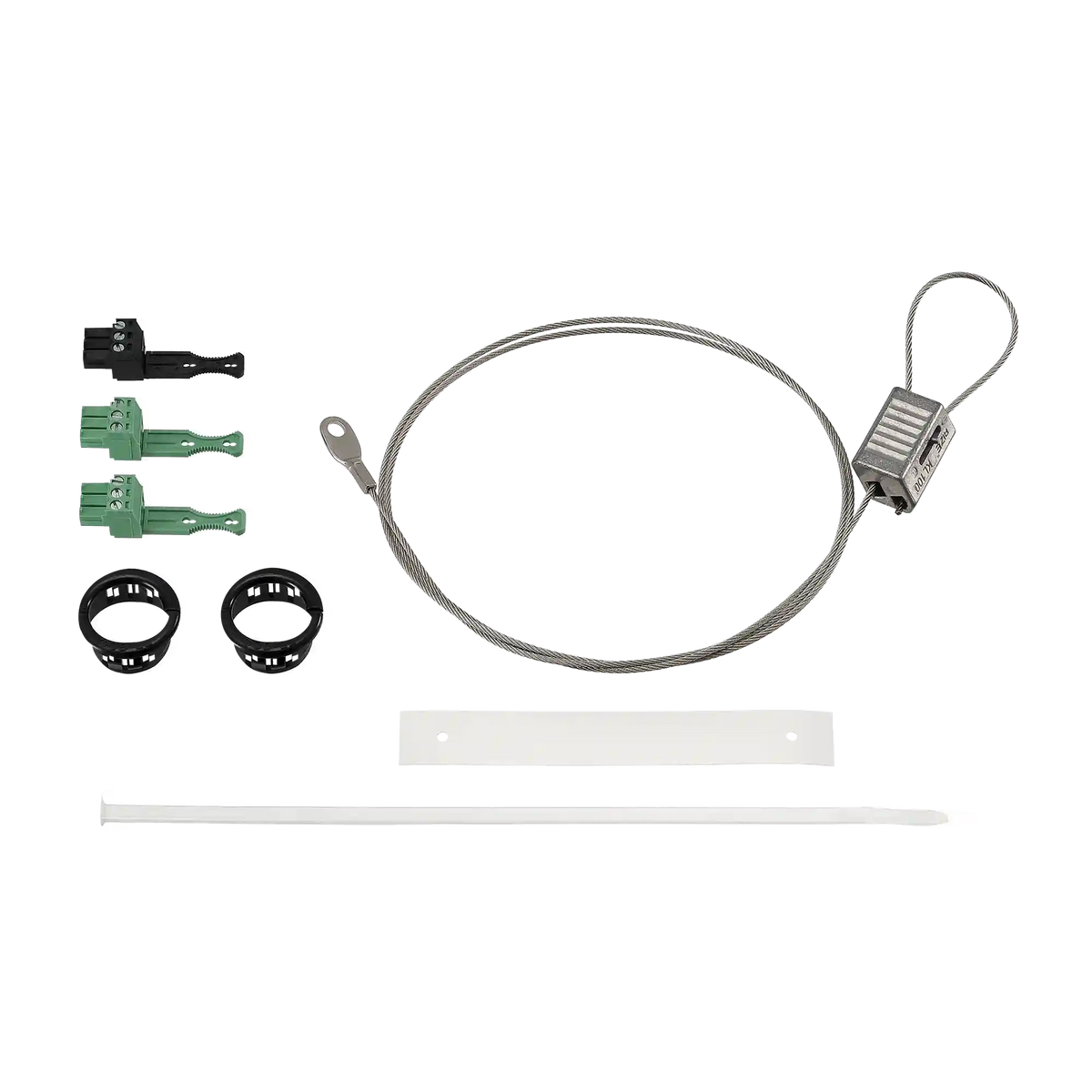

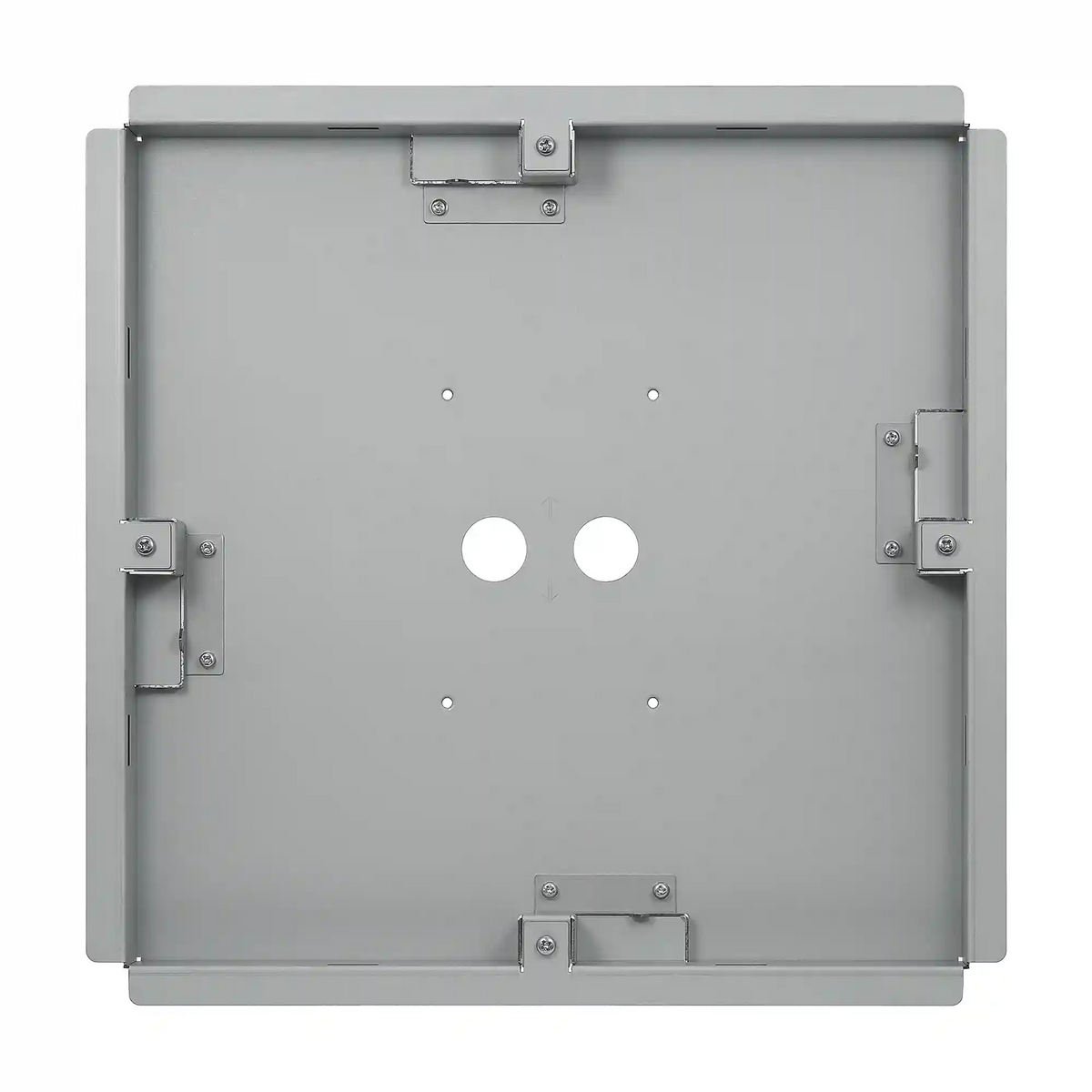

• Includes tile bridge, safety wiring, and mounting hardware and accessories


• Low-reflective white finish matches ceiling tiles in most environments


• Powered by network PoE
